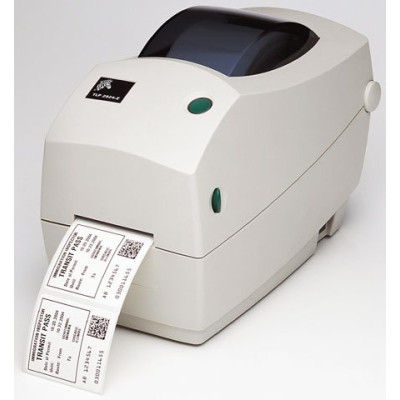

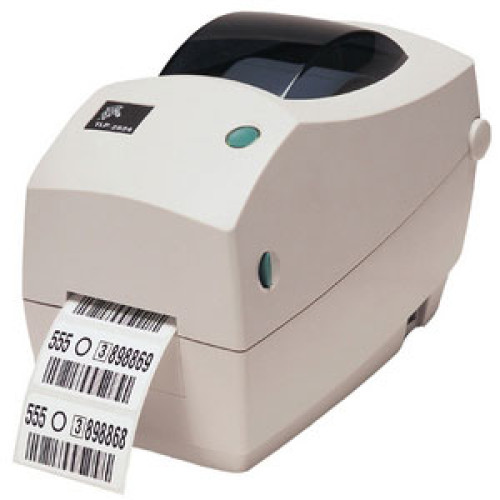

Zebra TLP 2824-Z Barcode Label Printer

The ultra-compact TLP 2824-Z barcode label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. Its ease of use, including its OpenACCESS design and clear media window for simple media loading and monitoring, makes the TLP 2824-Z a foolproof means to increased workplace efficiency. The TLP 2824-Z integrates easily into a variety of printing applications, including retail point of sale, shelf labeling, product marking, inventory control and asset management, health care specimen labeling, patient tracking, and small office mailing, shipping and file labeling. With serial, parallel, and USB interfaces, plus network connection options, the TLP 2824-Z meets a variety of connectivity needs.

See all options

Specs & Info
All Options

Resident scalable font
Print methods: Direct thermal or Thermal transfer
Head-up sensor
Construction: ABS double-walled casing
OpenACCESS design
32 bit RISC processor

Zebra TLP 2824-Z Specs (pdf)

Zebra TLP 2824-Z Driver (download)

Standard Features

Print methods: Direct thermal or direct thermal/thermal transfer
Construction: ABS double-walled casing
OpenACCESS design
32 bit RISC processor
Resident scalable font
Head-up sensor

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2.75 available to user)
Optional: 8 MB Flash with real time clock (12 MB total)

Print width: 2.2" (56 mm)

Print length: 39" (991 mm)

Print speed: 4" (102 mm)/sec

Media sensors: Reflective
Transmissive

Media Characteristics

Maximum label and liner width: 2.36" (59.9 mm)

Minimum label and liner width: 1.00" (25.4mm)

Maximum label and liner length: 39" (991 mm)

Maximum label and liner length (optional): N/A no SDRAM optional memory

Maximum roll diameter: 5" (127 mm)

Core diameter: 1.0" (25.4 mm) and 1.5" (38 mm)

Media thickness: 0.003" (.075 mm) to 0.007" (0.18 mm)

Media types: fanfold, roll-fed, continuous, die-cut, tag stock, continuous receipt, linerless, black bar, black mark, gap, notch, optional linerless platen, receipt

Ribbon Characteristics

Outside diameter: 1.36" (35 mm)

Standard length: 244' (74 m)

Ratio: 1:1

Ribbon width

Recommended to be at least as wide as media
1.33" (33.8 mm) to 2.24" (58 mm)

ID Core: 0.5" (12.7 mm)

Operating Characteristics

Operating temperature: TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 10-90% non-condensing

Storage humidity: 5-95% non-condensing

Electrical: Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz

Agency approvals

FCC
VCCI/PSE
C-TICK
UL
NOM
CE
CCC/SRRC
IEC
IRAM
AAMI

Physical Characteristics

Width: 5.5" (140 mm)

Height: 7.0" (178 mm)

Depth: 9.5" (241 mm)

Weight: 3.5 lbs (1.6 kg)

Shipping weight: 6.1 lbs (2.8 kg)

Orientation: Center

Programming Languages

Core programming languages: ZPL, ZPL II

Barcodes/Symbologies

Linear: Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
UPC-A
UPC-E
Plessey
Postnet
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
RSS-14 (limited, truncated, stacked)
UPC-A and UPC-E with EAN 2 or 5 digit extensions

2-dimensional: PDF417
MicroPDF417
Code 49
MaxiCode
Codablock
Data Matrix
QR Code
RSS

Fonts and Graphics

Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
Supports user-defined fonts and graphics - including custom logos
IBM Code Page 850 International Characters

Extended Details

Refine Your Options

Shop By

Manufacturer

Zebra (7)

Interface Options

Printer Type

Desktop (7)

Maximum Print Width

2.20 (7)

Print Speed

4 (7)

Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11100-0001 | SKU: ZEB20144

Thermal transfer & direct thermal, 203 dpi, 4 ips, 2" print width, serial & USB interfaces, 8MB SDRAM, 4MB flash. Includes U.S. power supply. Order cables separately. See accessories. For serial, please see 9-9 cable, P/N 2901-9MF9ST.
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11101-0001 | SKU: ZEB20145

Thermal transfer & direct thermal, 203 dpi, 4 ips, 2" print width, serial & USB interfaces, 8MB SDRAM, 4MB flash and dispenser. Includes U.S. power supply. Order cables separately. See accessories. For serial, please see 9-9 cable, P/N 2901-9MF9ST.
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11200-0001 | SKU: ZEB20146

Thermal transfer & direct thermal, 203 dpi, 4 ips, 2" print width, parallel interface, 8MB SDRAM, 4MB flash. Includes U.S. power supply. Order cables separately. See accessories.
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11201-0001 | SKU: ZEB20147

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Parallel
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11400-0001 | SKU: ZEB20148

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Serial
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11401-0001 | SKU: ZEB20149

Thermal transfer & direct thermal, 203 dpi, 4 ips, 2" print width, USB & ZebraNet Print Server II interfaces, 8MB SDRAM, 4MB flash and dispenser. Includes U.S. power supply. Order cables separately. See accessories.
Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11102-0001 | SKU: ZEB76903

TLP 2824-Z Direct Thermal-Thermal Transfer Printer (ZPL2, Serial and USB Interfaces, 100-240 VAC US-EU, Cutter, 8MB SDRAM, 4MB Flash and No RTC)
