Zebra TLP 2824-Z Barcode Label Printer Zebra TLP 2824-Z Barcode Label Printer Zebra TLP 2824-Z Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

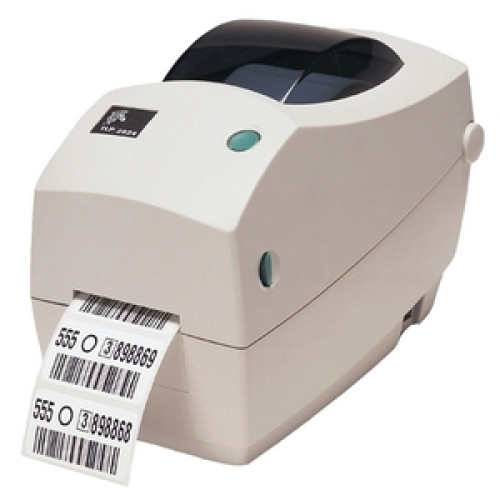

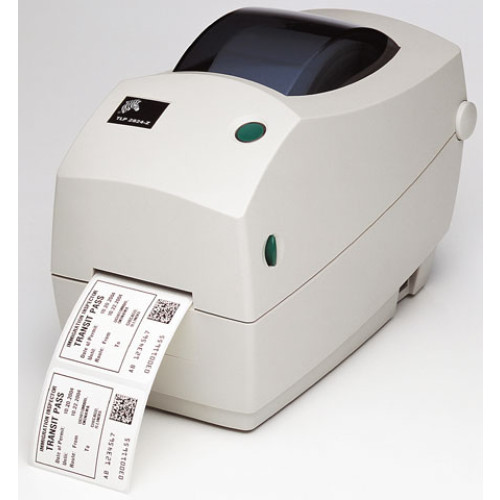

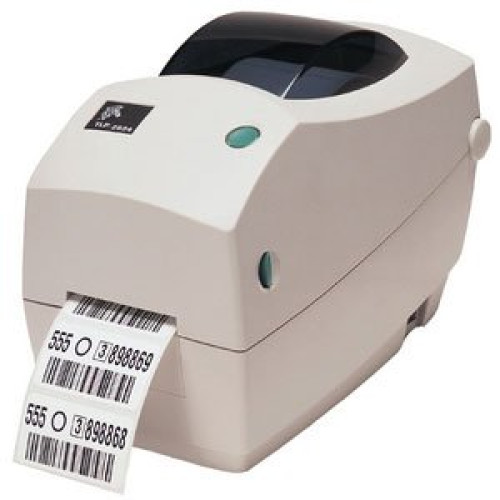

Zebra TLP 2824-Z Barcode Label Printer
Part #: 282Z-11401-0001 | SKU: ZEB20149

The ultra-compact TLP 2824-Z bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. Its ease of use, including its OpenACCESS design and clear media window for simple media loading and monitoring, makes the TLP 2824-Z a foolproof means to increased workplace efficiency. The TLP 2824-Z integrates easily into a variety of printing applications, including retail point of sale, shelf labeling, product marking, inventory control and asset management, healthcare specimen labeling, patient tracking, and small office mailing, shipping and file labeling. With serial, parallel, and USB interfaces, plus network connection options, the TLP 2824-Z meets a variety of connectivity needs.

Zebra TLP 2824-Z Barcode Label Printer

Part Details: Thermal transfer & direct thermal, 203 dpi, 4 ips, 2" print width, USB & ZebraNet Print Server II interfaces, 8MB SDRAM, 4MB flash and dispenser. Includes U.S. power supply. Order cables separately. See accessories.
Need a different version of the Zebra TLP 2824-Z Barcode Label Printer? View all 7 configurations

Additional Information

Filter No
Interface Options Ethernet, USB
Label Core No
Manufacturer Zebra
Max Label Width 2.36
Max Roll Outer Diameter 5
Maximum Print Width 2.20
Model Name TLP 2824-Z
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5
Zebra TLP 2824-Z Specs Zebra TLP 2824-Z Specs (pdf)

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Ethernet
    • 1 x Serial
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 3.6" (91.44mm) x 7.5" (190mm)
    • 6.8" (172.72mm) x 3.6" (91.44mm) x x 7.5" (190mm)
  • Weight: 2.7 lb (1.22 kg)
  • Shipping Weight: 5.3lb (2.4kg)

Included Features

  • Included Features:
    • Dispenser
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • FCC
    • VCCI
    • IRAM
    • PSE
    • C-TICK
    • UL-CUL
    • NOM
    • GOST-R
    • CSA
    • CE
    • CCC
    • SRRC
    • CB
    • BSMI

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Other

  • Package Contents:
    • LP 2824-Z Label Printer
    • User Documentation: English/European/Latin America

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
