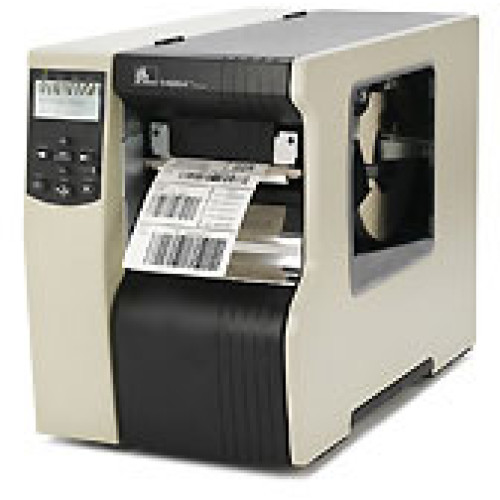

Zebra 140Xi4 Barcode Label Printer

Built on the proven Xi series platform that is known for rugged durability and performance, the new Zebra 140Xi4 features a 5.0" print width and brings several additional features to high-volume, mission-critical applications and environments that require 24 x 7 operations. Building on these high-performance hallmarks, the 140Xi4 now provides several new features and benefits including increased print speeds up to 14"/356 mm per second for increased batch and print/apply productivity, LCD content customizable to user needs, a large, easy to use, multilingual LCD screen, flexible connectivity options including simultaneous parallel/Ethernet with internal Ethernet included as standard in the product advanced ribbon- and media-low LCD/e-mail alerts and an intelligent printhead system.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Zebra 140Xi4 Specs (pdf)

Zebra 140Xi4 Driver (download)

STANDARD FEATURES

Print methods: Thermal transfer or direct thermal
Construction: 12-gauge steel frame
Single 32 bit 133 Mhz RISC processor

More Standard Features

16 MB SDRAM; 8 MB non-volatile Flash memory
Automatic media/ribbon sensing capability
Improved head test for element out
Auto calibration
Clear media side door for ease of supplies monitoring
300 unique darkness settings
RS-232, Parallel ports
USB 2.0 port
Internal ZebraNet 10/100 PrintServer
ZPL or ZPL II Programming Language
XML enabled printing
Mirror feature allows user-defined printer configurations to be retrieved from the network
Create and design customizable printer LCD menus
Large (240W x 128H pixels), multilingual, backlit LCD display
Transmissive and reflective media sensors
Multi-level Element Energy Equalizer (E3) for superior print quality
Unicode™ - Compliant
Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory

16 MB SDRAM
8 MB Flash

Print width: 5.04" (128mm)
Print length: 150" (3810 mm) maximum with 16 MB memory using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 5.51" (140mm)
Minimum label and liner width: 1.57" (40mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: continuous, black mark, roll-fed, die-cut, fanfold

Ribbon Characteristics

Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: 1.57" (40mm) to 5.1" (130mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C) Direct thermal
Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrica: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals

BSMI
cTUVus
CCC
CE
C-Tick
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
KCC
NOM
S Mark
STB
UkrSEPRO
VCCI
ZIK

Physical Characteristics

Width: 11.31" (287.3mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 55 lbs (25 kg)

Programming Languages

Core programming languages: XML, ZPL, ZPL II

barcodes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF
PDF417
QR Code (requires Asian version printer)
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Fonts and Graphics

Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
IBM^® Code Page 850 International Characters
