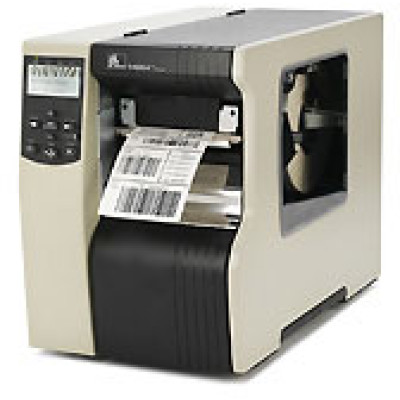

Zebra 140Xi4 Specs
Zebra 140Xi4 Driver
STANDARD FEATURES
- Print methods: Thermal transfer or direct thermal
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
More Standard Features
- 16 MB SDRAM; 8 MB non-volatile Flash memory
- Automatic media/ribbon sensing capability
- Improved head test for element out
- Auto calibration
- Clear media side door for ease of supplies monitoring
- 300 unique darkness settings
- RS-232, Parallel ports
- USB 2.0 port
- Internal ZebraNet 10/100 PrintServer
- ZPL or ZPL II Programming Language
- XML enabled printing
- Mirror feature allows user-defined printer configurations to be retrieved from the network
- Create and design customizable printer LCD menus
- Large (240W x 128H pixels), multilingual, backlit LCD display
- Transmissive and reflective media sensors
- Multi-level Element Energy Equalizer (E3) for superior print quality
- Unicode™ - Compliant
- Intelligent printhead
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
Memory
- 16 MB SDRAM
- 8 MB Flash
Print width: 5.04" (128mm)
Print length: 150" (3810 mm) maximum with 16 MB memory using
continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 5.51" (140mm)
Minimum label and liner width: 1.57" (40mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: continuous, black
mark, roll-fed, die-cut, fanfold
Ribbon Characteristics
Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: 1.57" (40mm) to 5.1" (130mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature:
40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature:
32° F (0° C) to 105° F (40° C) Direct
thermal
Storage temperatures:
-40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrica: Universal power supply with power factor connection
90-264 VAC; 48 - 62 Hz
Agency approvals
- BSMI
- cTUVus
- CCC
- CE
- C-Tick
- EN55022 Class B
- EN55024
- EN61000-3-2,3
- FCC Class B
- GOST-R
- ICES-003 Class B
- IEC 60950-1 / EN60950
- KCC
- NOM
- S Mark
- STB
- UkrSEPRO
- VCCI
- ZIK
Physical Characteristics
Width: 11.31" (287.3mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 55 lbs (25 kg)
Related Products
Options
- ZebraNet Wireless Plus Print Server
- ZebraNet Internal Wireless Plus (Discontinued)
- Internal IPv6 Print Server
- IBM Twinax interface
- IBM Coax interface
- Rewind with peel
- Cutter
- Bi-fold media door with clear panel
- Media supply spindle for 40 mm cores
- 64MB Flash Memory with ZPL II and XML
- Scalable and international fonts
- Applicator interface
- ZebraDesigner
- ZebraDesigner Pro
- ZebraDesigner for XML
- ZebraNet Bridge
- Enterprise Connector
- ZebraNet b/g Print Server
Communication and Interface Capabilities
- USB 2.0 port (12 Mbits per second)
- RS-232C/422/485 multi-drop (optional adaptor)
- High-speed, bi-directional, IEEE 1284 parallel interface
- ZebraNet Wireless Plus Print Server
- ZebraNet 10/100 Print Server
- IBM Twinax interface
- IBM Coax interface
- Applicator interface
- IPV6 Print Server
- ZebraNet b/g Print Server
Programming Languages
Core programming languages: XML, ZPL, ZPL II
barcodes/Symbologies
Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF
PDF417
QR Code (requires Asian version printer)
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Fonts and Graphics
- Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
- Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
- IBM® Code Page 850 International Characters
