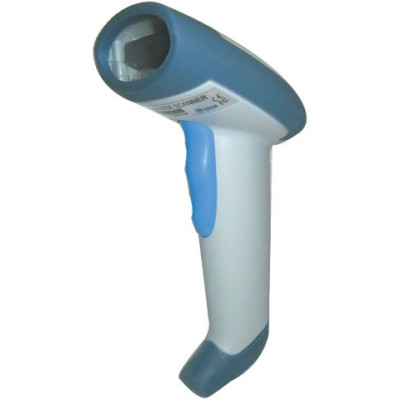

Unitech MS330 Barcode Scanner
Unitech Barcode Scanner, Keyboard & More

Unitech MS330 Barcode Scanner

Unitech MS330 Barcode Scanner

The MS330 from Unitech delivers easy-to-use, reliable performance at an affordable price for barcode reading applications in retail, office automation, post office, health care, and many others in light industry.
Discontinued - Need Assistance
See all options
  • 5 year limited warranty
  • Adjustable hands-free stand for easy reading
  • Clear adjustable audible beepers and visual good read LED ensure positive feedback to user
  • Easy programming using Windoes based software or barcodes
  • Fast reading and decoding of all major linear barcodes
  • Interchangeable cable design
  • Long range CCD scan engine
  • Robust design withstands 5 ft. (1.5 meter) drop to concrete
Unitech MS330 Specs Unitech MS330 Specs (pdf)
Optical
Light source 660 nm red LED
Sensor 3000 element linear array
Scan rate 50 scans/sec.
Print contrast 45% minimum absolute dark/light reflectance @ 660 nm
Scanning width 7.08" (180mm) maximum

Decoder

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Operation Trigger, flash, and continuous modes
Data editing Preamble, postamble, Code id, and data reformatting
Function keys PC, Macintosh, and IBM terminal keyboard

Electrical

Operating voltage 5V ?5%
Current Standby: ≤80 mA (switch mode)
Operating: 175 mA (keyboard wedge)

Communication and I/O

Interfaces supported Keyboard wedge
RS232
USB
Wand emulation

Mechanical

Weight 164g
Dimensions Length (horizontal): 3.9 Inches (100mm)
Height (vertical): 7.1 Inches (180mm)
Width: 2.75 Inches (70mm)

Environmental

Operating temperature 32°F to 122°F (0°C to 50°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Humidity 20% to 85% RH non-condensing
ESD protection Functional after 8K Contact and 12K Air
Drop Test 5 feet (1.5 meters) onto concrete
Regulatory approvals CE
FCC
BSMI
Warranty 3 years
Extended Details
Refine Your Options
  1. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1KB | SKU: 15399

    MS330 Long Range Scanner (with Hands Free Stand and Keyboard Wedge Interface Cable)
  2. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1RB | SKU: 15400

    MS330 Long Range Scanner (with Hands Free Stand and RS232 9-Pin Interface Cable)
  3. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1UB | SKU: 15401

    MS330 Long Range CCD Scanner Kit (with Hands-Free Stand and USB Cable)
  4. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1WB | SKU: 15402

    MS330 Long Range Scanner (with Hands Free Stand and HHLC Wand with 9-Pin Interface Cable)
  5. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1WS | SKU: 15403

    Long Range Scanner (with Custom Cable, to Connect to VFN3740 and 3750)
  6. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1 | SKU: 15969

    MS330 Long Range Scanner (No Cable)
  7. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1U | SKU: 15970

    MS330 Long Range Scanner (with USB Interface Cable-1550-201423)
  8. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1G | SKU: 23859

    Unitech MS330 Bar Code Reader - Wired - CCD
  9. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1K1 | SKU: 26596

    MS330-1 Long Range Scanner (with Hands Free Stand and 1550-210435 Keyboard Wedge Interface Cable)
  10. Unitech MS330 Barcode Scanner

    Unitech MS330 Barcode Scanner
    Part #: MS330-1R2 | SKU: 26597

    MS330, -1 Long Range Scanner (with Hands Free Stand and 1550-201409 RS-232 9-Pin Interface Cable)
