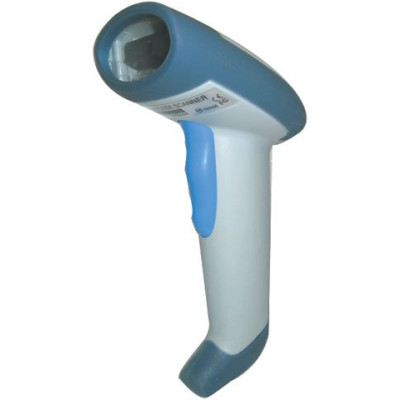

Unitech MS330 Barcode Scanner

The MS330 from Unitech delivers easy-to-use, reliable performance at an affordable price for barcode reading applications in retail, office automation, post office, health care, and many others in light industry.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

5 year limited warranty
Adjustable hands-free stand for easy reading
Clear adjustable audible beepers and visual good read LED ensure positive feedback to user
Easy programming using Windoes based software or barcodes
Fast reading and decoding of all major linear barcodes
Interchangeable cable design
Long range CCD scan engine
Robust design withstands 5 ft. (1.5 meter) drop to concrete

Unitech MS330 Specs (pdf)

Optical

Light source	660 nm red LED
Sensor	3000 element linear array
Scan rate	50 scans/sec.
Print contrast	45% minimum absolute dark/light reflectance @ 660 nm
Scanning width	7.08" (180mm) maximum

Decoder

Symbologies	China Postal Code Codabar Code 11 Code 32 Code 39 (full ASCII) Code 39 (Standard) Code 93 Code 128 Delta Code EAN-8 with add-on code EAN-13 with add-on code EAN 128 Interleaved 2 of 5 ISBN / Bookland EAN Italian Pharmacy Label Code IV Label Code V MSI / Plessey Standard 2 of 5 Toshiba Code UPC-A with add-on code UPC-E with add-on code
Operation	Trigger, flash, and continuous modes
Data editing	Preamble, postamble, Code id, and data reformatting
Function keys	PC, Macintosh, and IBM terminal keyboard

Electrical

Operating voltage	5V ?5%
Current	Standby: ≤80 mA (switch mode) Operating: 175 mA (keyboard wedge)

Communication and I/O

Interfaces supported

Keyboard wedge
RS232
USB
Wand emulation

Mechanical

Weight	164g
Dimensions	Length (horizontal): 3.9 Inches (100mm) Height (vertical): 7.1 Inches (180mm) Width: 2.75 Inches (70mm)

Environmental

Operating temperature	32°F to 122°F (0°C to 50°C)
Storage temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	20% to 85% RH non-condensing
ESD protection	Functional after 8K Contact and 12K Air
Drop Test	5 feet (1.5 meters) onto concrete
Regulatory approvals	CE FCC BSMI
Warranty	3 years

Extended Details

Refine Your Options

Unitech MS330 Barcode Scanner
Part #: MS330-1U1 | SKU: 26598

MS330 Long Range CCD Scanner Kit (with Hands-Free Stand and USB Cable 1550-201423)
Unitech MS330 Barcode Scanner
Part #: MS330-1U1G | SKU: 27513

MS330 Long Range CCD Scanner Kit (with Hands-Free Stand and USB Cable 1550-201423)
Unitech MS330 Barcode Scanner
Part #: MS330-1K | SKU: 32240

Unitech MS330-1K Bar Code Reader - Wired - CCD
Unitech MS330 Barcode Scanner
Part #: MS330-1R | SKU: 62086

MS330 Long Range Scanner (with RS232 9-Pin Interface Cable-1550-201409 - Requires Power Supply)

Recommended Accessories for Model: Unitech MS330 Barcode Scanner

Unitech MS100 Power Device
Part #: 101000-0150 | SKU: 4520

AC Adapter (110VAC to 5VDC) for the RS232 CCD Scanner

Price: $26.84
Unitech AS10 Accessory
Part #: MS201 | SKU: 4521

CCD STAND FOR 3" SCANNERS MS210, MS265, & OTHERS

Price: $25.77
Unitech Scanner Accessory
Part #: 5200-381680 | SKU: 23847

Unitech Mounting Plate - Steel
Unitech Scanner Accessory
Part #: 1010-900007G | SKU: 208565

Scanner Accessories, Power Adapter - (Power cord Sold Separately)
Unitech MS331 Accessory
Part #: 1550-201596 | SKU: 17103

Unitech Wand Emulation Interface Cable (Coiled) - RJ-50 Male - DB-9 Female - 4.49ft - Black
