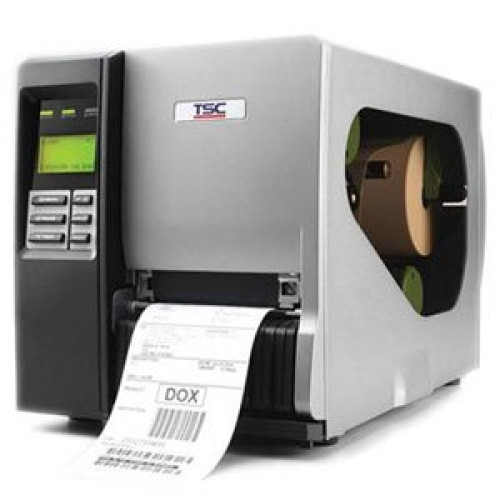

TSC TTP-644M Barcode Label Printer
TSC Printers

TSC TTP-644M Barcode Label Printer
Part #: 99-047A005-00LF | SKU: TSC207836

Offering 600-dpi resolution, the TSC TTP-644M die-cast aluminum label printer is designed to meet the most demanding bar coding and identification needs. With its durable design and high-resolution capability, the TTP-644M is ideal for mission-critical printing applications either on-demand or batch. The TTP-644M operates at speeds up to 4 ips. Standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB FLASH memory, and an SD memory-card slot for adding up to 4 GB of additional FLASH storage. The TTP-644M accommodates ribbons up to 600-meters long, along with a full 8.2-inch OD media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor.

TSC TTP-644M Barcode Label Printer

Part Details: Industrial Thermal transfer Printer, 600 dpi, Interface Options: USB, Serial, Ethernet, Parallel, Maximum Print width 4.09, SD Card Slot, Real-time clock.
Need a different version of the TSC TTP-644M Barcode Label Printer? View all 7 configurations

Additional Information

Included Features No
Interface Options Ethernet, Parallel, USB
Label Core No
Labels Per Day No
Manufacturer TSC
Max Label Width 4.6
Max Roll Outer Diameter No
Maximum Print Width 4.09
Model Name TTP-644M
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC TTP-644M Specs TSC TTP-644M Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Clear Media Side Door
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP-2410M
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-644M Pro
  • Product Name: TTP-644M Pro Thermal Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-644M Pro Thermal Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • TTP-644M Pro Thermal Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC
    • CB

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 40"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
    • Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Paper Low Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Labels for Model: TSC TTP-644M Barcode Label Printer

  • TSC TTP-644M Barcode Label Printer
    Part #: 99-024A005-00LF | SKU: TSC182653

    TTP-644M, TTP-644, PRINTER, 600 DPI, Thermal transfer, 4 ips, Ethernet, 32MB DRAM, 8MB FLASH, 6 IN LCD DISPLAY, USB, SERIAL, PARALLEL, 600 METER RIBBONS, TSPL-EZ LANG

  • TSC TTP-644M Barcode Label Printer
    Part #: 99-047A005-00LF | SKU: TSC207836

    Industrial Thermal transfer Printer, 600 dpi, Interface Options: USB, Serial, Ethernet, Parallel, Maximum Print width 4.09, SD Card Slot, Real-time clock.

  • TSC TTP-644M Barcode Label Printer
    Part #: 99-147A033-00LF | SKU: TSC502962

    TTP-644 MT, SLOT IN HOUSING, 600 dpi, 4 IPS Ethernet, USB, PARALLEL, SERIAL, 32GB SD FLASH CARD READER, USB HOST Real-time clock, REPLACES 99-147A006-OOLF

  • TSC TTP-644M Barcode Label Printer
    Part #: 99-147A033-30LF | SKU: TSC507736

    TTP-644MT + SLOT-IN HOUSING W PEEL OFF KIT

  • TSC TTP-644M Barcode Label Printer
    Part #: 99-147A033-70LF | SKU: TSC512048

    TTP-644MT,SLOT IN HOUSING, INTERNAL REWIND
