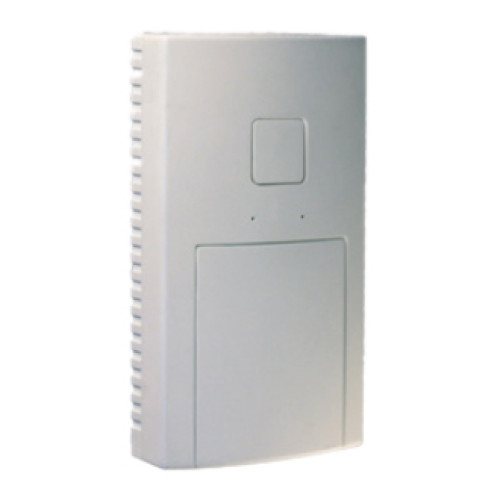

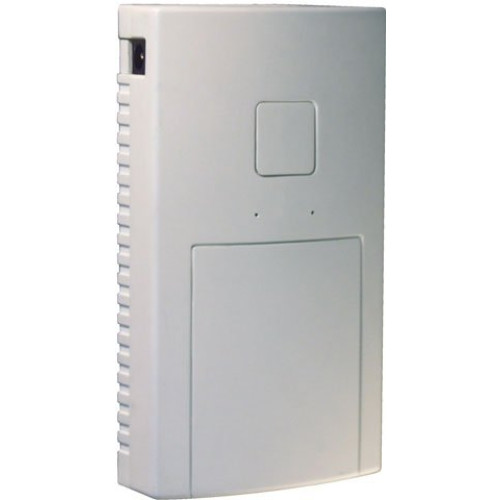

Motorola AP 6511 Access Point
Part #: AP-6511-60010-US | SKU: 114951

The Motorola AP 6511 brings powerful Wi-Fi to hotels, dormitories, hospitals and other multiple-dwelling units. Conventional access points (AP) can be challenging to deploy in the hallways of these units and require careful planning, drilling holes, pulling cable and installing ceiling brackets. In addition, high attenuation factors obstruct hallway APs including fire walls, mirrors, plumbing, and bathroom tile. The AP 6511 can be installed in the guest room in minutes using existing CAT5/6 cabling in the walls. The universal mounting bracket can be installed on any wall surface or a structured wiring telecom box in minutes. The AP 6511 includes self optimizing intelligent controller AP code, so any single AP 6511 can serve as a master for up-to 25 AP 6511 access points.

Motorola AP 6511 Access Point

Part Details: Low Profile WallPlate AP - 802.11 A/B/G/N - Single Radio - Ethernet PD Port - FE LAN Port - US Version.

Additional Information

Manufacturer No
Model Name AP 6511
Product Condition No
Wireless Type 802.11a/b/g/n

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.14 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain: 3.5 dBi
  • Antenna Type: Omnidirectional Antenna
  • Total Number of Antennas: 2
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • WEP
    • IEEE 802.1x
    • WPA/TKIP
    • WPA2/TKIP/AES

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-6511
  • Product Name: AP-6511 Wireless Access Point

Physical Characteristics

  • Height: 5"
  • Width: 3"
  • Depth: 10"
  • Form Factor: Wall Mountable
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE 802.11n
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.3
    • IEEE 802.3u
    • FCC
    • C-Tick
    • CE
    • IC
    • TELEC

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Accessories for Model: Motorola AP 6511 Access Point

  • Motorola AP 622 Accessory
    Part #: AP-PSBIAS-2P2-AFR | SKU: 145754

    Access Point Accessories, Poe Injector (Single Port, 802.3af). Require AC line cord (Part# 23844-00-00R)
  • Motorola AP 6511 Accessory
    Part #: KT-6511-0000D-WR | SKU: 114952

    AP 6511 Accessories, 3port Switched Ethernet Module For AP 6511
