Motorola Barcode Scanner and Mobile Handheld Computer

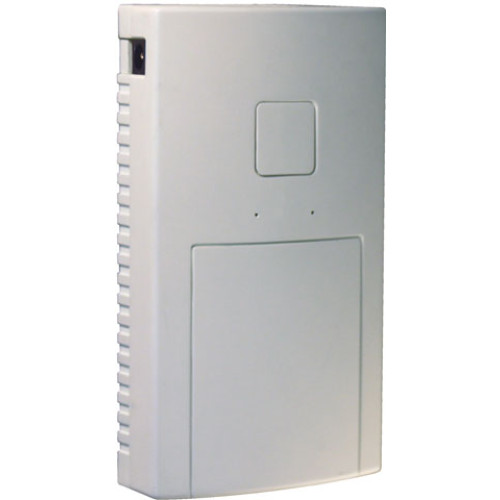

Motorola AP 6511 Access Point

The Motorola AP 6511 brings powerful Wi-Fi to hotels, dormitories, hospitals and other multiple-dwelling units. Conventional access points (AP) can be challenging to deploy in the hallways of these units and require careful planning, drilling holes, pulling cable and installing ceiling brackets. In addition, high attenuation factors obstruct hallway APs including fire walls, mirrors, plumbing, and bathroom tile. The AP 6511 can be installed in the guest room in minutes using existing CAT5/6 cabling in the walls. The universal mounting bracket can be installed on any wall surface or a structured wiring telecom box in minutes. The AP 6511 includes self optimizing intelligent controller AP code, so any single AP 6511 can serve as a master for up-to 25 AP 6511 access points.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

AP 6511 Specs (pdf)

PHYSICAL CHARACTERISTICS

Available mount configurations

Mount over any structured wiring telecom box, or on a flat surface.

LEDs

Two single color status LEDs; power, error, packets, operating frequency

Weight

1 lbs / 0.5 kg

Dimensions (HxWxD)

5" x 2.95” x 1” (12.8cm x 7.5cm x 2.54cm). 12oz (0.34Kg)

Physical interfaces

10/100Mb auto-sensing via 8-pin header 10/100Mb auto-sensing

POWER SPECIFICATIONS

Integrated power over ethernet support

Standards-based IEEE 802.3af

Operating voltage

802.3af supply: 48 VDC @ 12.95W (typical), 36 VDC to 57 VDC (range)

Operating current

0.170w (typical)

RADIO SPECIFICATIONS AND NETWORKING

Maximum transmit power settings

20dBm

Network standards

802.11a, 802.11b, 802.11g, 802.11n

Operating channels

5GHz: All channels from 4920 MHz to 5825 MHz 2.4GHz: Chan 1-13 (2412-2472 MHz), Actual operating frequencies depend on national regulatory limits

Layer 2 and layer 3

802.11-802.3 bridging, 802.1q VLAN tagging and trunking, Dyn DNS, DHCP server/client

Management

Independent management via SSH, Telnet. Adopted management by Controller AP available at first release. Adoption by RF switch available in future software release.

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11n: MCS 0-15 up to 300Mbps

Operating bands - EU

FCC EU 2.412 to 2.462 GHz 2.412 to 2.472 GHz 5.150 to 5.250 (UNII -1) 5.150 to 5.250 GHz 5.725 to 5.825 (UNII -3) 5.150 to 5.350 GHz 5.725 to 5.850 (ISM) 5.470 to 5.725 GHz (Country Specific) Japan 2.412 to 2.484GHz 4.900 to 5.000 GHz 5.150 to 5.250 GHz

Wireless medium

Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)

Security

Stateful Firewall, NAT, 802.1x, 802.11i, WPA2-CCMP (AES), WPA2-TKIP, WPA-TKIP, Rogue Detection, Secure guest access (HotSpot)

QoS

802.11e, 802.1p, DiffServ, TOS

REGULATORY SPECIFICATIONS

EMC

FCC Part 15 Class B

Environmental

EU RoHS Directive 2002/95/EEC

Electrical safety

EN 60950-1

Human exposure EMF

EN 50385, FCC Part 2, OET Bulletin 65, RSS-102 Issue 2

USER ENVIRONMENT

Electrostatic discharge

+/- 15 kV (Air), +/- 8 kV (contact)

Operating humidity

5 to 95% RH (non condensing)

Storage altitude

15, 000 ft./4572 m

Operating altitude

8, 000 ft./2438 m

Operating temperature

-4°F to 122° F/0°C to 50° C

Storage temperature

-40°F to 158° F/-40°C to 70° C

Extended Details

Refine Your Options

Motorola AP 6511 Access Point
Part #: AP-6511-60010-WR | SKU: 114818

Zebra AP-6511 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - PoE Ports - Wall Mountable
Motorola AP 6511 Access Point
Part #: AP-6511-60010-US | SKU: 114951

Low Profile WallPlate AP - 802.11 A/B/G/N - Single Radio - Ethernet PD Port - FE LAN Port - US Version.
Motorola AP 6511 Access Point
Part #: AP-6511E-60010-US | SKU: 300918

Zebra 6511E IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - PoE Ports - Wall Mountable
Motorola AP 6511 Access Point
Part #: AP-6511E-60010-WR | SKU: 300919

Zebra 6511E IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - PoE Ports - Wall Mountable

Recommended Accessories for Model: Motorola AP 6511 Access Point

Motorola AP 622 Accessory
Part #: AP-PSBIAS-2P2-AFR | SKU: 145754

Access Point Accessories, Poe Injector (Single Port, 802.3af). Require AC line cord (Part# 23844-00-00R)
Motorola AP 6511 Accessory
Part #: KT-6511-0000D-WR | SKU: 114952

AP 6511 Accessories, 3port Switched Ethernet Module For AP 6511
