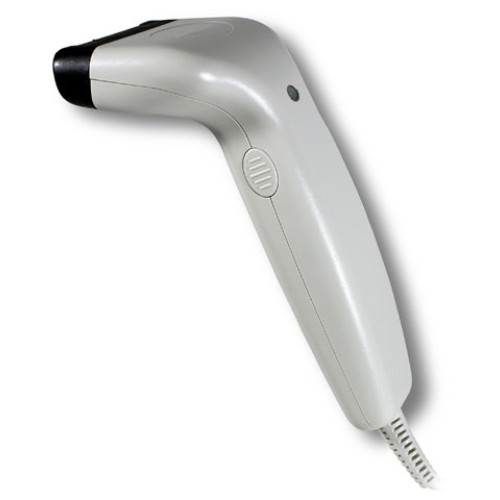

Hand Held Valueteam 3080 Barcode Scanner
Part #: 3080B-12 | SKU: 4641

VALUETEAM scanners offer the excellent scanning performance you expect from a Welch Allyn brand product at an attractive entry-level price. The VT3060 connects to the most often used terminals and PCs for Point-of-Sale or general-purpose applications. The VT3060 has a reading width of 60mm (2.3 inches) is appropriate for most applications. When bar codes are wider the VT3080 with 80 mm (3.1 inches) reading width will handle them. Both scanners read in contact with the bar code and are compact in size and comfortable to use.

Hand Held Valueteam 3080 Barcode Scanner

Part Details: B Handheld CCD Scanner (80 mm, with Universal Interface - PC Wedge, RS-232 and Wand Emulation)

Need a different version of the Hand Held Valueteam 3080 Barcode Scanner? View all 2 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	Valueteam 3080
Product Condition	No
Specialty Encoding	None

Valueteam 3080 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 4 mil(s)
Symbologies Supported:
- Code 128
- EAN-128
- UPC-A
- UPC-E
- EAN-13
- AN-8
- Codabar (NW7)
- Code 39
- Code 32
- Code 2 of 5
- Code 93
- Code 11
- MSI/PLESSEY
- UK Plessey
Scanner Type: CCD
Scan Rate: 100 Scans/sec
Interface Options: Decoded Output Commercial
Interface Connectivity: Corded
Input Voltage: 5 V DC
Depth of Field: 2"

General Information

Manufacturer: Hand Held Products
Product Line: VALUETEAM
Product Name: VALUETEAM 3080B Barcode Scanner

Physical Characteristics

Weight: 225 g - With Cable

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -10Â°C (14Â°F) to 55Â°C (131Â°F) Storage
Humidity:
- 20 to 85% Operating Non-condensing
- 15 to 90% Storage Non-condensing

Agency Approvals

Agency Approvals:
- FCC Class A, CE
- EMC 89/336/EEC

Other

Package Contents:
- VALUETEAM 3080B Barcode Scanner
- Base Unit

Warranty

Manufacturer Warranty: 1 Year(s)

Extended Details
