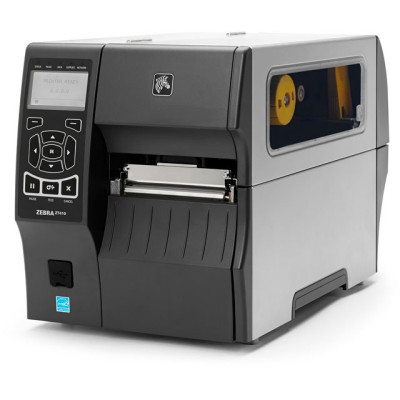

Zebra ZT410 RFID Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra ZT410 RFID Printer

Zebra ZT410 RFID Printer

With a print width of 4 inches, the ZT410 RFID printer/encoder has print speeds up to 14 ips and offers high-resolution (300 dpi) printing for small-label applications. The ZT410 RFID industrial printer features adaptive encoding technology for excellent media flexibility and simple RFID calibration
See all options
  • Integrated ThingMagic RFID reader/encoder
  • Prints and encodes tags with a minimum pitch of 0.6"
Zebra ZT410 Specs Zebra ZT410 Specs (pdf)

RFID FEATURES

• Integrated ThingMagic® RFID reader/encoder
• RFID system is available as a factory- or field-installable option
• Prints and encodes tags with a minimum pitch of 0.6”/16 mm
• Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C

RFID Features Continued

• Compliant with Global RFID radio to support multinational deployments
• Adaptive encoding technology automatically eliminates complex RFID placement guidelines
• Variable inlay placement supports a range of inlay positions for maximum media flexibility
• Auto-tag calibration for label lengths of 2” or greater
• Optimized for throughput of both small and large labels
• RFID job-monitoring tools track RFID performance
• Support for industry standard multi-vendor chip-based serialization (MCS)
• Supports block permalocking of user memory compatible with ATA Spec 2000
• RFID ZPL® commands provide compatibility with existing Zebra RFID printers

More Standard Features

• Construction: Metal frame and Bi-fold metal media cover with enlarged clear viewing window
• Side-loading supplies path for simplified media and ribbon loading
• Element Energy Equalizer™ (E3™) for superior print quality
• Communication - USB 2.0, High-Speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
• Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
• Link-OS
• Bi-colored status LEDs for quick printer status
• ENERGY STAR® qualified

Printer Specifications

Resolution:
• 203 dpi/8 dots per mm
• 300 dpi/12 dots per mm (optional)
• 600 dpi/24 dots per mm (optional)
Memory:
• 256 MB RAM memory (4 MB User Available)
• 512 MB Flash memory (64 MB User Available)
Maximum Print Width: 4.09"/104 mm
Maximum Print Speed: 14 ips/356 mm per second
Media Sensors:
• Dual media sensors - transmissive and reflective

Media Characteristics

Media web width (label and liner):
• 1.00" (25.4 mm) to 4.50" (114 mm) Tear/Cutter
• 1.00" (25.4 mm) to 4.25" (108 mm) Peel/Rewind
Maximum Non-continuous Label Length: 39"/991 mm
Print Length
• 203 dpi: 157"/3988 mm
• 300 dpi: 73"/1854 mm
• 600 dpi: 39 "/991 mm
Maximum media roll size: 8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Media thickness: 0.0023"/0.058 mm to 0.010"/0.25 mm
Media types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Outside diameter: 450 m: 3.2"/81.3 mm O.D. on a 1.0"/25.4 mm I.D. core
Standard length: 1476′/450 m
Width: 2.00"/51 mm to 4.33"/110 mm
Ribbon setup: Ribbon Wound ink-side out: Ribbon wound ink-side in can be used with the optional ribbon spindle.

Environmental

Operating Environment
• Thermal transfer: 40º to 104ºF/5º to 40ºC
• Thermal direct: 32º to 104ºF/0º to 40ºC
Storage/Transportation Environment:
• -40º to 140ºF/-40º to 60ºC

Physical Characteristics

Width: 10.6"/269 mm
Height: 12.75"/324 mm
Depth: 19.50"/495 mm
Weight: 36 lb./16.33 kg

barcodes/Symbologies

• Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
• 2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Options and Accessories

Communication
• Parallel (Bi-directional interface)
• Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features
Media Handling
• Rewind: internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only)
• Peel - A front mount, passive peel option
• Peel - Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base
• Cutter: A front mount guillotine cutter and catch tray, 1" ID Core Media Supply Hanger
• Ink-side in ribbon supply spindle
Keyboard Display Unit
• Supports KDU Plus™ and ZKDU - Enter variable data and retrieve stored forms for standalone applications

Extended Details
Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Zebra (4)
Interface
  1. Bluetooth (2)
  2. Ethernet (2)
  3. RS-232 Serial (2)
  4. USB (2)
Maximum Print Width
  1. 4.09 (2)
  1. Zebra ZT410 RFID Printer

    Zebra ZT410 RFID Printer
    Part #: ZT41043-T0100A0Z | SKU: ZEB282952

    4" print width - Thermal Transfer - Direct Thermal - 300 dpi - UHF RFID - Tear bar - USB 2.0 - RS-232 Serial - 10/100 Ethernet - Bluetooth 2.1 - USB Host - EPL 3 - ZPLII - North America power cord
  2. Zebra ZT410 RFID Printer

    Zebra ZT410 RFID Printer
    Part #: ZT41042-T0100A0Z | SKU: ZEB282809

    4" print width - Thermal Transfer - Direct Thermal - 203 dpi - UHF RFID - Tear bar - USB 2.0 - RS-232 Serial - 10/100 Ethernet - Bluetooth 2.1 - USB Host - EPL/ZPLII programming languages, North America power cord
  3. Zebra ZT410 RFID Printer

    Zebra ZT410 RFID Printer
    Part #: ZT41042-T0100AKH | SKU: ZEB418765

    Industrial RFID Label Printer - Zebra ZT410R - Thermal Transfer - UHF Frequency Range - Includes Silverline Solutions - Bluetooth/Ethernet/RS-232 Serial/USB - 4-inch Print Width - 203 dpi - Color-coded Media Path
  4. Zebra ZT410 Barcode Label Printer

    Zebra ZT410 Barcode Label Printer
    Part #: ZT41043-T0E00C0Z | SKU: ZEB581517

    ZT410, DIRECT THERMAL/THERMAL TRANSFER, RFID, 12 DOT 300DPI, TEAR, SERIAL, USB, 10/100 ETHERNET, BLUETOOTH, EURO AND UK POWER PLUGS
