Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

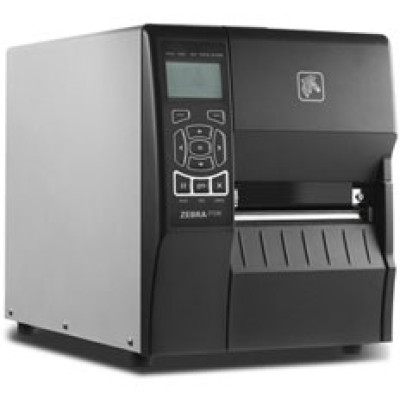

Zebra ZT230 Barcode Label Printer

Zebra ZT230 Barcode Label Printer

The ZT230 is the premium product within the Zebra printer line. Distinguishing features of the ZT230 include the mostly metal printer cover, an icon based LCD graphical user interface, and larger print ribbon capacity (450M). The ZT230 is the next generation replacement for the S4M, having the same list price while offering an enhanced feature set and improved mechanical and functional design.
Starting at: Price: $526.60
See all options
  • Space-saving design
  • Multiple connectivity options: parallel, 10/100 Ethernet, 802.11b/g/n wireless
  • Fast installation and integration
  • Intuitive, effortless media loading
  • Crisp, clean text and barcodes "" even on narrow media
  • Built for light industrial and commercial environments
  • Easy, tool-less platen and printhead removal enable simple cleaning and replacement
  • Energy Star-compliant
  • Icon-based status LEDs provide immediate and easily visible printer status
Zebra ZT230 Specs Zebra ZT230 Specs (pdf) Zebra ZT230 Driver Zebra ZT230 Driver (download)

Standard Features

  • Print Methods: Direct thermal and Thermal Transfer (optional)
  • Resolution: 203 dpi
More Standard Features
  • Element Energy Equalizer (E3) for superior print quality
  • USB 2.0 and RS-232 serial ports
  • Dual media sensors - transmissive and reflective sensing technology, selectable through software or front panel
  • Media supply hanger designed for 1" (25mm) through 3" (76mm) core diameters
  • Side loading metal print mechanism with head open lock
  • Link-OS;environment capable
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory: 128MB Flash, 128MB RAM
Print width: 4.09"/104 mm
Print length: 203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional)
Print speed: 203 dpi:
6" (152 mm)/sec
300 dpi:
6" (152 mm)/sec
Media sensors Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.50"/114 mm
Minimum label and liner width: 0.75" (19.4 mm)
Maximum non-continuous label length: 39"/991 mm
Maximum Media Roll Size:
  • 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
  • 6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core

Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm
Media types: continuous, die-cut, notch, black mark
Ribbon Characteristics
Outside diameter: 300m = 2.7"/68.6 mm; 450m = 3.2"/81.3 mm
Standard length: 984'/300 m or 1476'/450 m
Ribbon width: 1.57"/40 mm to 4.33"/110 mm
Ribbon setup: Ribbon wound ink-side out
ID Core: 1.0" (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40F (5C) to 104F (40C)
Thermal transfer DT: Operating temperature 32F (0C) to 104F (40C) Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 20% to 85% non-condensing
Storage humidity: 5% to 85% non-condensing
Energy Star certified universal auto-ranging (PFC-compliant) power supply 100-240VAC; 47-63 HZ. Not 90-265VAC; 48-62Hz
Agency approvals
  • IEC 60950
  • EN 55022 Class B
  • EN55024
  • EN 61000-3-2
  • EN 61000-3-3
Physical Characteristics
Width: 9.5"/242 mm
Height: 10.9" (277 mm)
Depth: 17" (432 mm)
Weight: 20 lbs (9.1 kg)
Shipping weight: 25 lbs (11.4 kg)
Related Products
Options Factory Installed Printer Options
  • Thermal Transfer Core-to-Core Ribbon Handling System
  • Print head 300 dpi (12 dots/mm)
  • A front mount, passive peel option, w/ no take-up spindle
  • A front mount guillotine cutter
  • Liner Take-Up for ZT230 only, rewinds entire 8" roll of liner (includes peel option)
Field Installed Printer Options
  • Additional scalable and smooth bitmapped fonts available
  • Print head 300 dpi (12 dots/mm)
  • A front mount, passive peeler
  • A front mount guillotine cutter
  • Internal parallel port option
  • ZebraNet 10/100 Print Server - supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features.
  • ZebraNet n Printer Server - supports 802.11 a/b/g/n networks via an internally integrated option
  • Real Time Clock (RTC) -date/time for standalone applications
  • Keyboard Display Unit (KDU) option - Enter variable data and retrieve stored forms for standalone applications (requires null modem adapter with DB9 serial cable).
Communication and Interface Capabilities
  • Internal parallel port option
  • ZebraNet 10/100 Print Server - supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features.
  • ZebraNet n Printer Server - supports 802.11 a/b/g/n networks via an internally integrated option.
Programming Languages
Core programming languages: ZPL I/ZPL II
Bar Codes/Symbologies
Bar code modulus "X" dimension: - Picket fence (non-rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.3 mil to 33 mil - Ladder (rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.9 mil to 39 mil Bar code ratios - 2:1, 7:3, 5:2, & 3:1 Linear bar codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2-dimensional bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts and Graphics
  • Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10 times, height and width independently. However, fonts E and H (OCR-A and OCR-B) are not considered ¬"?in-spec" when expanded.
  • The scalable smooth font 0 (CG Triumvirate Bold Condensed) is expandable on a dot-by-dot basis, height and width independent, while maintaining smooth edges. Maximum character size depends on available memory.
  • IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G, and 0 through software control.
