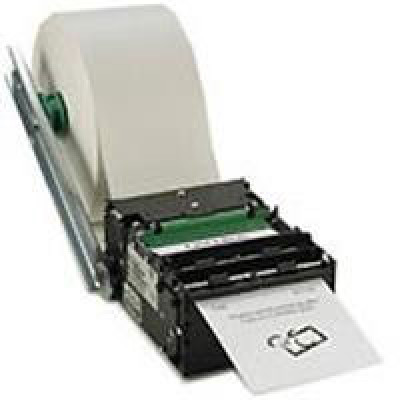

Zebra TTP 2000 Receipt Printer

More Standard Features

• Guillotine cutter
• Auto media loading
• Flexible media mounting

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

• 2.3" (58 mm)
• 2.4" (60 mm)
• 3.1" (80 mm)
• 3.3" (82.5 mm)

Print length: 2.75" (70 mm) to 23.6" (600 mm)
Print speed: 5.9" (150 mm)/sec

Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.1 mm)
Media types: Roll or fanfold

Operating Characteristics

Operating temperature DT: Operating temperature: 32° F (0° C) to 122° F (50° C)
Direct thermal Storage temperatures: 32° F (0° C) to 122° F (50° C)
Operating humidity: 35-75% non-condensing R.H.
Electrical: 24 VDC, ± 5%, average 2 A when printing

Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (68 mm)
Depth: 5.7" (144 mm)
Weight: 2.4 lbs (1.1 kg)

Kiosk Characterstics

Max/Min Receipt Width: 3.15" (80 mm) and 2.4" (60 mm)/2.3" (58 mm) and 2.4" (60 mm)

Related Products

Communication and Interface Capabilities

• TTP 2010 RS-232 Serial
• TTP 2020 Parallel
• TTP 2030 USB
• Windows 2000, XP, Server 2003, OPOS

barcodes/Symbologies

Linear Code 128
Code 39
Interleaved 2-of-5
2-D PDF 417
ISBN
UPC
EAN
Fonts and Graphics

• ATM9 (monospaced 14.4 cpi)
• Up to eight fonts can be loaded
