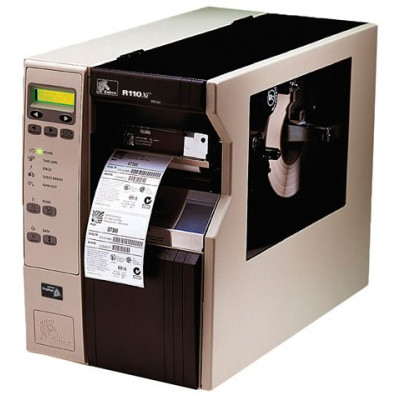

Zebra R110xi RFID Printer

Standard Features

• Fully integrated ThingMagic UHF RFID Reader/Encoder for transponder types:
  • EPC Class 1
  • EPC Class 0
  • Matrics’ 0+
  • SO18000-06B
• EPC “Gen2” via firmware update
• RFID processes optimized for fastest label throughput
• New RFID ZPL commands allow ease of RFID set-up with maximum flexibility
• Program position allows users to place transponders virtually anywhere within a smart label
• RFID calibration feature automatically selects the program position for optimal transponder placement
• RFID counters keep track of the good and bad labels
• Variable RFID power settings for both read and write allows maximum flexibility for printing small labels
• Full function front panel and multilingual backlit LCD display with user-programmable password protection
• ZebraLink™, WebView, (requires optional ZebraNet ® PrintServer II) and Alert (requires optional ZebraNet PrintServer II)
• Thin film printhead with E3® Element Energy Control
• Thermal transfer and thermal direct printing of bar codes, text, and graphics
• XML Enabled Printing
• 32 bit 133 MHz RISC processor
• Type I, II linear memory up to 32 MB and future availability of Type III Series PC Card Interface
• Clear media side door—easy monitoring of supplies usage without opening the printer systems
• Zebra printer driver for Windows™ 3.X and 95/98/NT/2000 operating systems
• Internal real-time clock
• Auto calibration—printer calibrates when printer is turned on or when printhead is closed with approximately two labels
• Early Warning Systems for low label, low ribbon, and clean printhead alerts

Operating Characteristics

 Environmental (Thermal Transfer)
Operating temperature:
Thermal transfer = 41ºF to 104ºF (5ºC to 40ºC)
Thermal direct = 32ºF to 104ºF (0ºC to 40ºC)
Storage temperature: -40ºF to 140ºF (-40ºC to 60ºC)
Operating humidity: 20% to 85% non-condensing R.H.
Storage humidity: 5% to 85% non-condensing R.H.

Electrical
Universal power supply with power-factor correction 90-264 VAC, 48 – 62 Hz

Agency approvals
Bi-National UL 60950 3rd edition/CSA
CAN/CSA-C22.2 No. 60950-00 Third Edition;
FCC Part 15.107 & 15.109 Class B; FCC Part
15.247; Canadian ICES-003, Class B;
IC RSS-210

Connectivity
High-speed serial interface
High-speed bi-directional, IEEE 1284-1994
parallel interface
RS-232C with DB9F connector
USB 2.0 port

Programming Languages

Core programming languages
ZPL ® and ZPLII® -- Universal language for Zebra printers
ZBI™ -- Controls and interprets text and data from peripherals and non-ZPL printer programming languages. Transmits captured data over LAN or WAN via e-mail or TCP/IP messaging.

Bar codes/Symbologies

Linear

2-Dimensional Codes

Fonts and Graphics
Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font Ø (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent
Sets: IBM Code Page 850 International Characters
Contains USFT® from Agfa Monotype Corporation

Graphics Features
Supports user-defined fonts and graphics – including custom logos

Options and Accessories

• ZebraNet PrintServer II
• ZebraNet 10/100 Print Server
• ZebraNet Wireless Print Server
• Additional fonts
• RS-422/485 multi-drop (optional adaptor)
• Applicator interface
• IBM Twinax interface
• IBM Coax interface
• BAR-ONE ® software
• Media supply spindle
• Media rewind spindle
• Linear PCMCIA cards
• ATA-Style PCMCIA cards or Compact Flash (CF) cards
