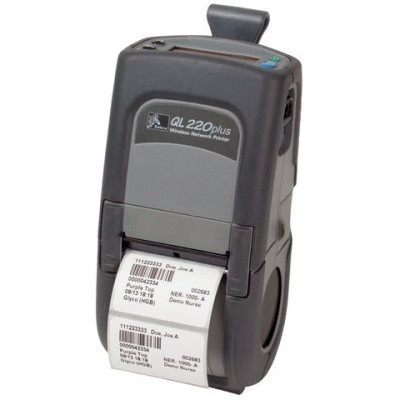

Zebra QL220 Plus Portable Barcode Printer

At 1.04 lbs (.47 kg), the lightweight QL 220 is the smallest network addressable printer in the AIDC Industry. This 2 inch (50.8 mm) direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and an optional LCD, it provides user-friendly options to keep your business moving. The QL 220 is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale at boutique stores where space is at a premium. The QL 220's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs. As needs change, so can QuickLink modules.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Accommodates situations real-time and at the point of application
Connects to a wider variety of terminals
Offers a rugged, lightweight mobile solution

Zebra QL220 Plus Specs (pdf)

Zebra QL220 Plus Driver (download)

Standard Features

Print method: Direct thermal
Rubber infused plastic over-mold design for tough conditions
Battery monitoring via a battery low indicator light or gauge on the optional LCD
Lithium ion battery
"œClamshell" design and center locking media loading
Backward compatible with Encore and Cameo media and cables
Label Vista and Windows printer drivers
Quick Flip Peel and Present Mode
32-bit High Speed Processor
USB 2.0 Full Speed Support

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

8 MB SRAM
4 MB Flash

Print width: 1.89" (48 mm) maximum

Print length: 32" (813 mm) maximum

Print speed: 3" (76 mm)/sec

Media sensors: Reflective
Transmissive

Media Characteristics

Maximum label and liner width: .63" (16 mm) to 2.18" (55 mm)

Maximum roll diameter: 2.2" (55.9 mm)

Core diameter: Interchangeable .75" (19.1 mm) or 1.38" (34.9 mm)

Media thickness: Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil

Media types: roll-fed, die-cut, linerless, receipt

Operating Characteristics

Operating temperature: DT: Operating temperature 5° F (-15° C) to 122° F (50° C) Direct thermal

Storage temperatures: -13° F (-25° C) to 158° F (70° C)

Operating humidity: 10-80% non-condensing

Storage humidity: 10-90% non-condensing

Electrical: External charger options

Lithium Ion

2100 Ah

7.2 V

Agency approvals

FCC and CE Class B compliance
Design certified by CSA
CB Scheme report
NOM certified
C-Tick clearance

Physical Characteristics

Width: 3.57" (90.7 mm)

Height: 7.15" (181.6 mm)

Depth: 2.96" (75.2 mm)

Weight: 1.04 lbs (0.47 kg)

Programming Languages

Core programming languages: EPL2, ZPL II, CPCL-native

Barcodes/Symbologies

Linear: Codabar
Code 128
Code 93
Code 39
EAN-8 and EAN-13 with 2 or 5 digit extensions
Interleaved 2-of-5
Postnet
Plessey
UCC/EAN-128
FIM
UPC-A and UPC-E with 2 or 5 digit extensions

2-dimensional: PDF417
MaxiCode
Data Matrix
RSS
QR Code
QR Code (requires Asian version printer)

Fonts and Graphics

Standard fonts: five resident scalable, rotatable fonts from 12-48 pt.
Downloadable soft fonts from Label Vista software
Optional internal character sets
Supports graphics, line and box drawing features; PCX and bitmap

Extended Details

Refine Your Options

Shop By

Manufacturer

Zebra (51)

Interface Options

Printer Type

Mobile (47)

Included Features

Maximum Print Width

Print Speed

3 (5)

Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LU1C0000-00 | SKU: ZEB90453

QL 220, Plus Direct thermal Mobile Printer (USB, 8MB/16MB, LCD, Cable Ready, Linered Platen, Label Present and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories.
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LUGB0000-00 | SKU: ZEB90454

QL 220, Plus Direct thermal Mobile Printer (USB, 8MB/16MB, LCD, ZPR 802.11b/g, Linerless Platen and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories.
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LUGC0000-00 | SKU: ZEB90455

Zebra QL 220 Plus Direct Thermal Printer - Monochrome - Portable - Label Print - USB - 1.89 Print Width - 3 in/s Mono - 203 dpi - Wireless LAN - Roll Fed, Die-cut Label, Linerless, Receipt - 2.18 Label Width
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LUGA0000-55 | SKU: ZEB107094

QL 220, Plus Direct thermal Mobile Printer (USB, 8MB/16MB, LCD, 802.11b/g, Linered Platen, Belt Clip, BB CA). Power supply (Part# CC16614-G4) not included. See accessories.
Zebra QL220 Plus Receipt Printer
Part #: Q2D-LUGA0000-06 | SKU: ZEB131767

QL220+ 802.11b/G HD
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LDGAB000-00 | SKU: ZEB187493

QL220+ CHIN 802.11b/G DT/Linered platenL
Zebra QL220 Plus Receipt Printer
Part #: Q2D-LUBB0000-00 | SKU: ZEB191005

QL220+ DT USB/Bluetooth LINERLESS PLTN BELT CLIP
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LUGA0000-GA | SKU: ZEB191315

QL220 Plus, QL 220 Plus Direct thermal Mobile Printer (USB, 8MB/16MB, LCD, 802.11b/g, Linered Platen and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories. This is the TAA compliant version of this product for government purchasers. Please call for more information.
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2D-LUBCE010-00 | SKU: ZEB214951

QL220+ CPCL/EPL/ZPL/XML USB/ Bluetooth Linered platenLLP SENSOR STRAP
Zebra QL220 Plus Portable Barcode Printer
Part #: Q2C-MUFA0000-00 | SKU: ZEB26714

QL 220 Direct thermal Mobile Printer (2 inch Print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, Membrane-LED, Zebra Value Radio 802.11b, Linered Platen and Belt Clip)
