Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer Zebra ZT230 Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

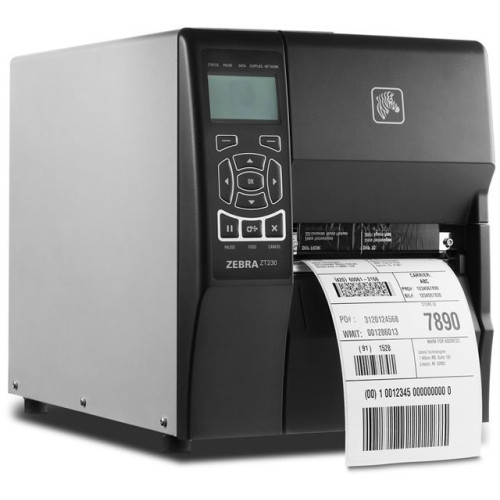

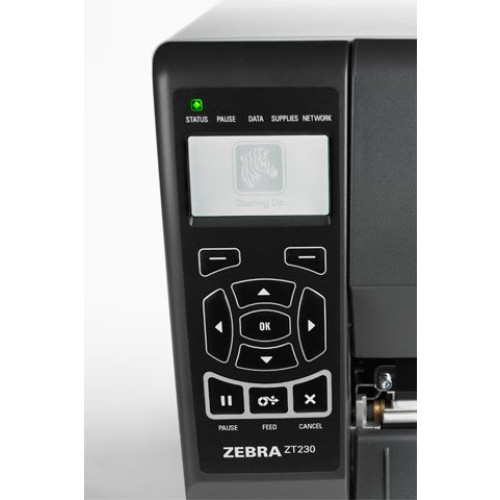

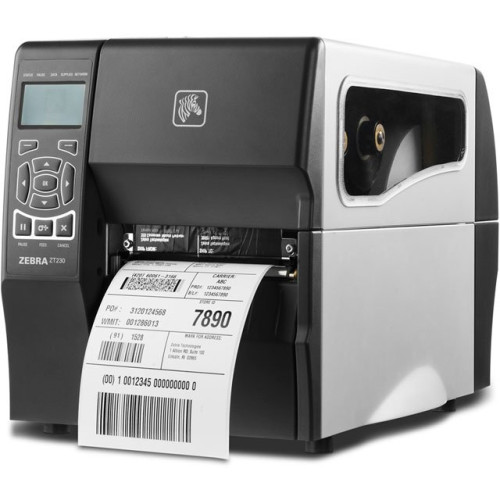

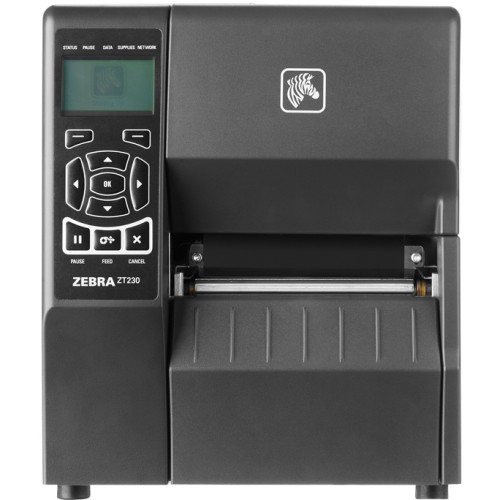

Zebra ZT230 Barcode Label Printer
Part #: ZT23042-T11C00FZ | SKU: ZEB196361

The ZT230 is the premium product within the Zebra printer line. Distinguishing features of the ZT230 include the mostly metal printer cover, an icon based LCD graphical user interface, and larger print ribbon capacity (450M). The ZT230 is the next generation replacement for the S4M, having the same list price while offering an enhanced feature set and improved mechanical and functional design.

Zebra ZT230 Barcode Label Printer

Part Details: Industrial Label Printer - Zebra ZT230 - Thermal Transfer - 203 dpi - 6ips - Serial/USB/Wireless - Peeler - 4-inch Print Width - ROW - US Power Cord - Cables Sold Separately
Need a different version of the Zebra ZT230 Barcode Label Printer? View all 87 configurations
$1,154.09
See Price in Cart (Why?)

Additional Information

Brand (Incoming new front-end MFG) Zebra
Included Features EPL2, Peeler, ZPL2, ZBI
Interface Options USB, Wi-Fi, Serial (RS-232)
Label Core 1 inch, 3 inches
Manufacturer Zebra
Max Label Width 4.5"
Max Roll Outer Diameter 6, 8
Maximum Print Width 4.09
Model Name ZT230
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 6.0 inches
Product Condition No
Ribbon Core 1
Zebra ZT230 Specs Zebra ZT230 Specs (pdf) Zebra ZT230 Driver Zebra ZT230 Driver (download)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Clear Bi-fold Media Side Door
    • Bi-color LED
    • Icon-graphics
    • Element Energy Equalizer
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • RSS Composite
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Macro PDF
    • RSS-14
    • Aztec Code
    • Macro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • Unicode
    • KCC
    • BSMI
    • UkrSepro

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11n

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
Extended Details
