Zebra ZD500 Barcode Label Printer Zebra ZD500 Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

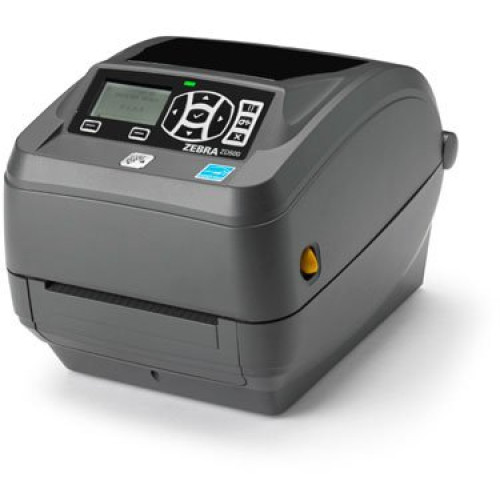

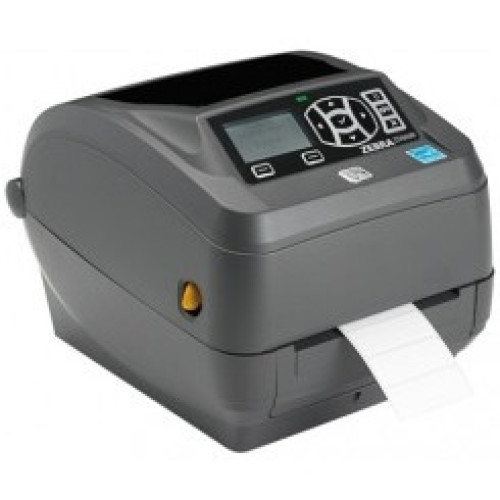

Zebra ZD500 Barcode Label Printer
Part #: ZD50043-T01A00FZ | SKU: ZEB346826

Bringing Link-OS environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Zebra ZD500 Barcode Label Printer

Part Details: Desktop Printer - Zebra ZD500 - Thermal Transfer - 300 dpi - 4ips - USB/USB Host/Serial/Ethernet/Wi-Fi/Bluetooth - 4-inch - Standard Tear - LCD User Interface
Need a different version of the Zebra ZD500 Barcode Label Printer? View all 13 configurations

Additional Information

Filter No
Interface Options Bluetooth, Ethernet, Parallel, USB, USB Host, Wi-Fi, Serial (RS-232)
Label Core 1 inch
Labels Per Day No
Manufacturer Zebra
Max Label Width 4.25"
Max Roll Outer Diameter 5
Maximum Print Width 4
Model Name ZD500
Print Method Thermal Transfer
Print Resolution 150 dpi, 300 dpi
Print Speed 4.0 inches
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch
Zebra ZD500 Specs Zebra ZD500 Specs (pdf)
Printer Features
  • Tool-less printhead and platen replacement
  • OpenACCESS for easy media loading
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD User Interface
  • Zebra E3 Printhead Energy Control
  • ENERGY STAR qualified
  • Link-OS enabled
  • Print Touch app
  • Unicode compliant for multi-language printing
  • 16 resident expandable ZPL II bitmap fonts
  • Two resident scalable ZPL fonts
  • Auto-switching 100-240V power supply
  • Head-up sensor
  • Standard tear-off mode feature
  • 3\" media core adaptor
  • Zebra printer drivers for Windows™
Printer Specifications

Resolution:

  • 203 dpi (8 dots/mm)
  • 300 dpi (12 dots/mm) optional

 Memory:

  • 128 MB Std SDRAM memory (4 MB available to user)
  • 256 MB Std Flash memory (56 MB available to user)


Print length:

  • 39\" (990 mm) maximum


Programmable print speeds of 2, 3, 4, 5, and 6 ips (51, 76, 102, 127, and 152 mm/s)

Media sensors:

  •  Full width reflective and multiposition transmissive sensors
Media Characteristics

Maximum label and liner length: 39\"/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75\"/19 mm to 4.25\"/108 mm

Label Length:

  • Minimum using tear off mode: .25\" (6.3 mm)
  • Minimum with label present sensor used - 0.50\" (12.7 mm)
  • Minimum with cutter - 1.0\" (25.4 mm)

Maximum media roll size: 5\"/127 mm O.D.

Media thickness: 0.003\"/0.08 mm to 0.012\" (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Ribbon Characteristics

Outside diameter: 1.36\"/35 mm
Standard length: 244'/74M
Ratio:  1:1 media to roll to ribbon
Width:  1.33\"/33.8 mm to 4.3\"/109.2 mm
Core inner diameter: 0.5\"/12.7 mm

Environmental

Storage Temperatures: -40 degrees F/-40 degrees C to 140 degrees F/60 degrees C

Physical Characteristics

Width:  7.6\"/193 mm
Height: 7.5\"/191 mm
Depth: 10.0\"/254 mm
Weight: 4.9 lbs/2.2 kg

Barcodes/Symbologies
  • Barcode Ratios: 2:1 (non-rotated) and 3:1
  • Linear Bar Codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
  • 2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec
Options and Accessories
  • 300 dpi print resolution printing for fine detail and crisp images
  • Wireless—802.11 a/b/g/n and Bluetooth 3.0
  • Dispenser—label peel and present with present sensor
  • Cutter for various media types
  • RFID encoding available
  • ZKDU and KDU Plus keyboard display for stand-alone printing solutions
