Zebra Z6M Plus Barcode Label Printer Zebra Z6M Plus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

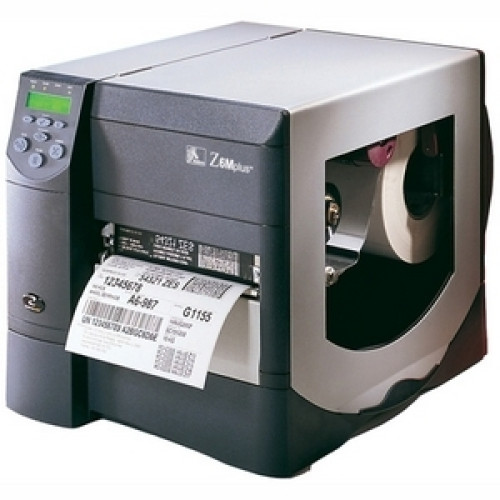

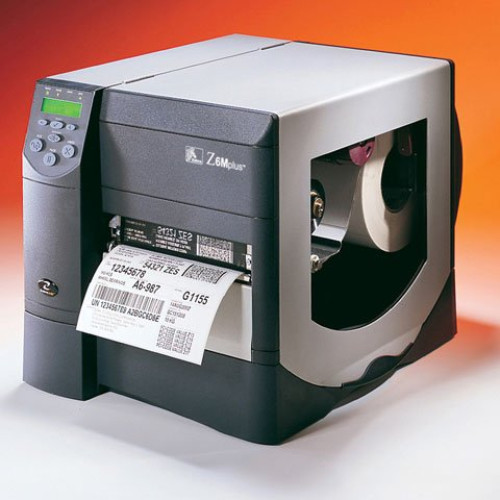

Zebra Z6M Plus Barcode Label Printer
Part #: Z6M00-2001-0020 | SKU: ZEB8865

Form follows function in this simple-to-operate Z6Mplus die-cast metal thermal printer. Available in both 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm), the Z6Mplus offers the same Z Series ruggedness, but now with more performance in a wide-width format. Rely on these top-of-the-line printers to get the job done, cost-effectively, with Zebra's faster linear PCMCIA Flash memory option that drives productivity farther than ever before! Upgradeable to grow with changing needs, the Z6Mplus is ideal for shipping and receiving, compliance labeling, asset tracking, work in process, transportation and hospitality ticketing, and commercial or small business needs. With an internal Ethernet option, super-fast external memory options, industry leading throughput, ZebraLink Alert and WebView, and complex multi-language font support, the Z6Mplus is an unbeatable commercial wide web printer.

Zebra Z6M Plus Barcode Label Printer

Part Details: Z6MPlus Direct Thermal-Thermal Transfer Printer (203 dpi, 6.6 Inch Print Width, 10 ips Print Speed, Serial Interface, 8MB DRAM, 2MB Flash and PrintServer II)
Need a different version of the Zebra Z6M Plus Barcode Label Printer? View all 24 configurations

Additional Information

Filter No
Interface Options Ethernet
Label Core No
Manufacturer Zebra
Max Label Width 6.75
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name Z6M Plus
Print Method No
Print Resolution No
Print Speed 10
Printer Mobility No
Printer Type Industrial
Product Condition No
Zebra Z6M Plus Specs Zebra Z6M Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Z Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: Z6Mplus
  • Product Name: Z6Mplus Thermal Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 13.4"
  • Depth: 18.7"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Zebra Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
    • Zebra Z6Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord
  • Certifications & Standards:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • Product Markings:
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)
  • Additional Information:
    • Print length: 73" (1,851 mm)
    • 32-bit processor
    • Media thickness: 0.0023" (.058 mm) to 0.010" (.25 mm)
    • Metal media cover with large clear window
    • Auto-calibration
    • Color-coded operator cues
    • Zebra's E3 Printhead Energy Control
    • Real Time Clock
    • Media sensors:
    • Transmissive
    • Reflective
    • Ribbon Characteristics:
    • Outside diameter: 3.2" (81.3 mm)
    • Standard length: 1476' (450 m) or 984' (300 m)
    • Ratio: 3:1 media roll to ribbon ratios
    • Ribbon width: 2" (51 mm) to 4.33" (110 mm)
    • Ribbon setup: Ribbon wound ink side out
    • ID Core: 1.0" (25.4 mm)
    • Fonts and Graphics:
    • Sets: IBM Code Page 850 International character set
    • Optional European and Asian font sets
    • Supports user-defined fonts and graphics, including custom logos
    • ZPL II drawing commands, including boxes and lines
    • Operating temperature:
    • Thermal transfer: 40° F (5° C) to 104° F (40° C)
    • Direct thermal: 32° F (0° C) to 104° F (40° C)

Media Types & Handling

  • Maximum Label Width: 7"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Die-cut Label
    • Notched
    • Tag Stock
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Memory

  • Standard Memory: 8 MB
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
