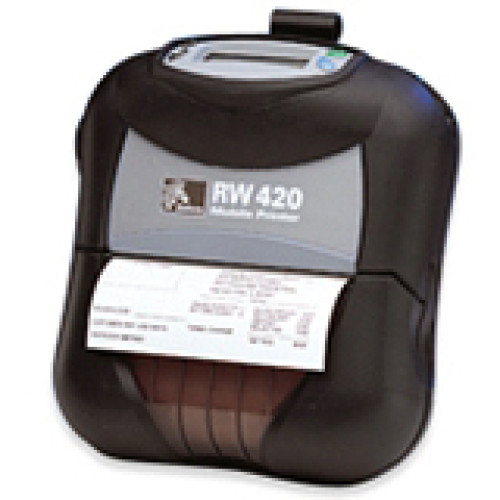

Zebra RW 420 Portable Barcode Printer
Part #: R4P-7U0A0000-00 | SKU: ZEB100900

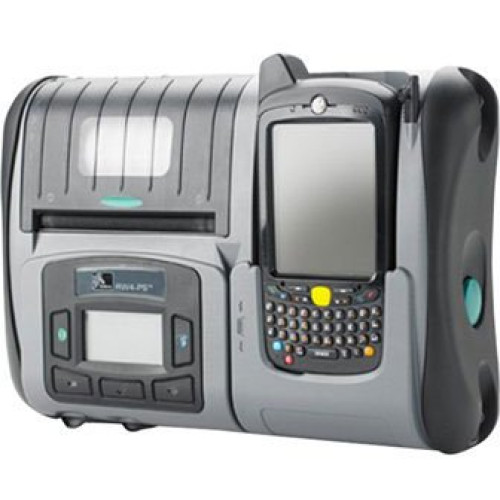

The RW 420 Print Station allows mobile workers to visit more customers and serve them in less time, with fewer devices to carry and fewer trips to the vehicle. The RW 420 Print Station is ideal for printing Receipt/invoices, settlement reports, load manifests, work orders, service estimates and electronic citations.

Zebra RW 420 Portable Barcode Printer

Part Details: Zebra RW 420 Direct Thermal Printer - Monochrome - Portable - Receipt Print - USB - Serial - 4.09 Print Width - 3 in/s Mono - 203 dpi - Receipt, Tag, Gap, Continuous Receipt, Linerless - 4.12 Label Width

Need a different version of the Zebra RW 420 Portable Barcode Printer? View all 8 configurations

Additional Information

Brand (Incoming new front-end MFG)	No
Filter	No
Label Core	0.75 inches
Manufacturer	Zebra
Max Roll Outer Diameter	2.25
Maximum Print Width	4.09
Model Name	RW 420
Print Method	No
Print Resolution	No
Printer Type	Mobile
Product Condition	No

Zebra RW 420 Specs (pdf)

Technical Information

Maximum Mono Print Speed: 3 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.09"
Recommended Use: Receipt Print
Barcode Symbology Supported:
- Code 39
- Code 93
- UCC/EAN 128
- Code 128
- UPC-E
- UPC-A
- EAN-8
- EAN-13
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- FIM
- POSTNET
- Interleaved 2 of 5
- MSI
- Codabar
- PDF-417
- Data Matrix
- Maxi Code
- RSS
- GS1 DataBar
- QR Code

General Information

Product Type: Direct Thermal Printer
Product Series: RW
Brand Name: Zebra
Manufacturer: Zebra Technologies Corporation
Product Model: RW 420
Product Name: RW 420 Receipt Printer

Physical Characteristics

Height: 6.9"
Width: 6.3"
Depth: 3"
Form Factor: Portable

Interfaces/Ports

USB: Yes
Serial Port: Yes

Media Types & Handling

Maximum Label Width: 4.12"
Media Type:
- Receipt
- Tag
- Gap
- Continuous Receipt
- Linerless
Media Thickness: 6.30 mil
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Label Core Size: 1.38"
Maximum Roll Diameter: 2.25"

Fonts & Emulation

Language Emulation:
- CPCL
- ZPL
- EPL
- XML

Display & Graphics

Display Screen Type: LCD

Other

Platform Supported: PC

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)
