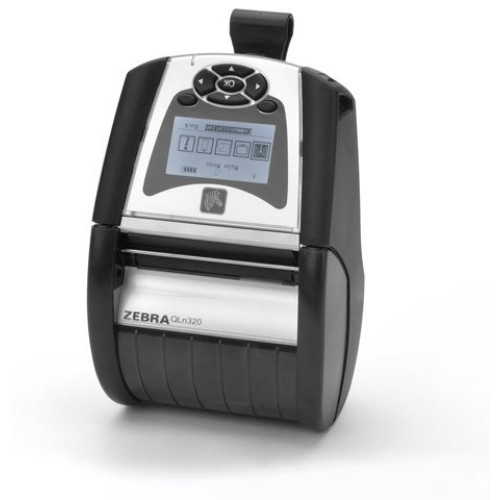

Zebra QLn320 Portable Barcode Printer
Part #: QN3-AUCA0MB0-00 | SKU: ZEB302567

Standard Features

• Direct thermal printing technology

• 203 dpi resolution (8 dots/mm)

• Print speed: up to 4 ips (100 mm/s)

---

More Standard Features

• CPCL and ZPL programming languages

• Resident fixed and scalable fonts

• 400 MHz 32-bit ARM processor with 128 MB RAM
  256 MB Flash

• Serial and USB ports

• 2.45 AH removable Li-Ion smart battery

• Easy to use peel and present mode

• Label present sensor for issuing labels one at a time

• Tear bar for easy receipt dispensing

• Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche

• Large, easy to read LCD control panel 240 x 128 pixels

• 5-way navigation buttons, two software defined keys

• Printer alerts on the display, help menus

• Tolerance of multiple drops from 5' (1.52m) to concrete

• Label odometer

• Real Time Clock
• Link-OS environment capable
• Linered media support with 0.75\" inner core

---

Printer Specifications

Resolution: 200 dpi (8 dots/mm)

Memory

• 128 MB RAM

• 256 MB Flash


Print width: 1.9\" (48 mm)
Print length: 32\" (813 mm)
Print speed: up to 4 ips (100 mm/s)

---

Optional Features

• Linerless silicone platen with 1.375\" inner core
• BT 3.0

• 802.11 a/b/n with BT 3.0

• 10/100 Ethernet support (via docking cable)

• 4300 mAh (nominal) removable extended capacity Li-ion smart battery
• ZBI 2.x

---

Media Characteristics

• Maximum label and liner width: 2.18\" (55.4 mm)
• Minimum label and liner width: .63\" (16 mm)
• Maximum label and liner length: 32\" (813 mm)
• Maximum roll diameter: 2.2\" (55.9 mm)
• Core diameter: .75\" (19 mm) or 1.375\" (34.9 mm)
• Media thickness: 2.3 mil to 5.5 mil
• Media types: black mark,gap

---

Programming Lanuages

• Core programming languages: CPCL and ZPL

---

Operating Characteristics

• Operating temperature: -4F (-20C) to 122F (50C)
• Storage temperatures: -13F (-25C) to 158F (65C)
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 10% to 90% non-condensing
• Electrical DC charging input: 12 VDC x 10% at 2A maximum
• Removable, rechargeable Li-ion battery
• 2.45AH
• 7.4V

Agency approvals

• FCC Part 15, Subpart B

• EN55022 Class-B

• EN60950

• EN55024

• VCCI class B

• EN55024

• EN61000-4-2

• EN61000-4-3

• EN61000-4-4

• EN61000-4-5

• CE

• UL

• TUV

• CSA

---

Physical Characteristics

Height: 2.75\" (70 mm)
Depth: 6.5\" (165 mm)
Weight: 1.25 lbs (.57 kg)

---

Communication and Interface Capabilities

• 802.11 a/b/n with BT 3.0

• Bluetooth 3.0

• 10/100 Ethernet support (via docking cradle)

• USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector

• Serial interface: 14-pin RS-232C

---

Bar Codes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
