Zebra GX430t Barcode Label Printer Zebra GX430t Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

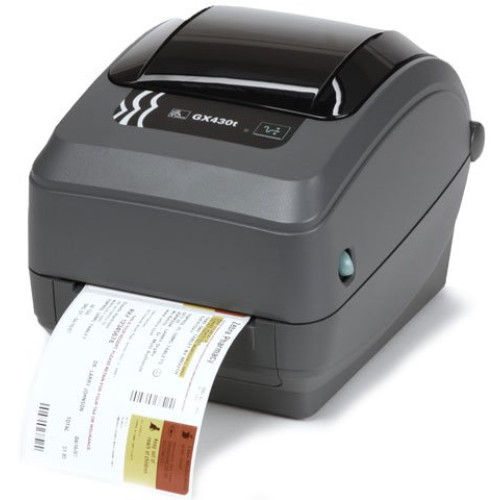

Zebra GX430t Barcode Label Printer
Part #: GX43-102512-000 | SKU: ZEB142359

The enhanced GX430t thermal-transfer desktop label printer provides versatility, a compact design and high-resolution 300 dpi printing capabilities. These printers offer multiple connectivity options and fast printing speeds. Well suited for a number of applications, the GX430t boasts an easy ribbon loading system and is perfect for low- to medium-volume printing.

Zebra GX430t Barcode Label Printer

Part Details: Desktop Printer - Zebra GX430 - Thermal Transfer - 300 dpi - 4ips - Serial/USB/Parallel - EPL2/ZPL2/Reflective Media Sensor/Cutter - Includes US Power Cord - No Real Time Clock
Need a different version of the Zebra GX430t Barcode Label Printer? View all 74 configurations

Additional Information

Filter No
Included Features Cutter, EPL2, Peeler, Reflective Media Sensor, Rewinder, ZPL2
Interface Options Parallel, USB, Serial (RS-232)
Label Core 1 inch
Labels Per Day No
Manufacturer Zebra
Max Label Width 4.25"
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Model Name GX430t
Print Method Thermal Transfer
Print Resolution 300 dpi, 305 dpi
Print Speed 4, 4.0 inches
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch
Zebra GX430t Specs Zebra GX430t Specs (pdf)

Standard Features

  • Print speed: up to 4\" (102 mm) per second
  • Print method: direct thermal/thermal transfer
  • EPL and ZPL programming languages standard
More Standard Features
  • OpenACCESS design for easy media loading
  • Quick and easy ribbon loading system
  • Dual-wall reinforced plastic construction
  • 32 bit RISC processor
  • XML-enabled printing
Printer Specifications
Resolution: 300 dpi (12 dots/mm)
Memory
  • Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
  • Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)
Print width: 4.09\" (104 mm)
Print length: 39\" (991 mm)
Print speed: 4\" (102 mm)/sec
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.25\" (108 mm)
Minimum label and liner width: 0.75\" (19 mm)
Maximum label and liner length: 0.38\" (9.7 mm) to 39\" (991 mm)
Maximum roll diameter: 5\" (127 mm)
Core diameter: 0.5\" (12.7 mm), 1.0\" (25.4 mm), 1.5\" (38.1)
Media thickness: 0.003\" (0.08 mm) to 0.0075\" (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Ribbon Characteristics
Outside diameter: 1.34\" (34 mm)
Standard length: 244' (74 m)
Ratio: 1:1
Ribbon width
  • Recommended to be at least as wide as media
  • 1.33\" (33.8 mm) to 4.3\" (110 mm)
ID Core: 0.5\" (12.7 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40F (5C) to 105F (41C)
Thermal transfer DT: Operating temperature: 40F (5C) to 105F (41C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
Physical Characteristics
Width: 7.6\" (194 mm)
Height: 7.5\" (191 mm)
Depth: 10\" (254 mm)
Weight: 4.6 lbs (2.1 kg)
Shipping weight: 9.1 lbs (4.1 kg)
Orientation Center
Related Products
Options
  • 64 MB Flash memory with real time clock (68 MB total)
  • 10/100 internal Ethernet connectivity
  • 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port)
  • Bluetooth wireless connectivity with LCD display (replaces Parallel port)
  • Adjustable media sensor
  • Cutter for various media types
  • Dispenser - label peel and present with present sensor
  • Asian font kits
Communication and Interface Capabilities
  • Auto-sensing Serial RS-232 (DB-9)
  • USB V1.1, bi-directional
  • Centronics Parallel
  • Optional: 10/100 internal Etherenet (replaces Parallel port)
  • Optional: 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port)
  • Optional: Bluetooth wireless connectivity with LCD display (replaces Parallel port)
Programming Languages
Core programming languages: EPL2, ZPL I/ZPL II
Bar Codes/Symbologies
Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
Fonts and Graphics
  • 16 resident expandable ZPL II bitmap fonts
  • One resident scalable ZPL font
  • Five resident expandable EPL2 bitmap fonts
  • Supports user-defined fonts and graphics - including customer logos
