Zebra GX420t Barcode Label Printer Zebra GX420t Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

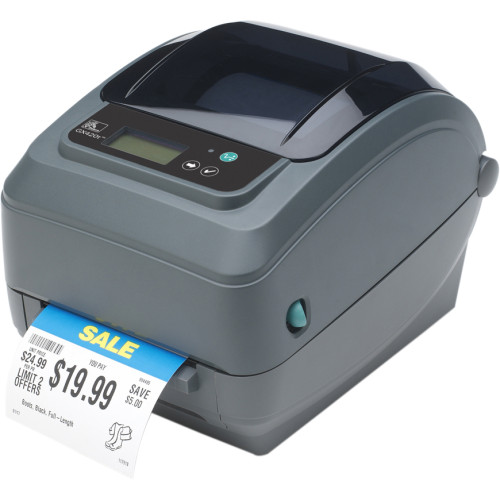

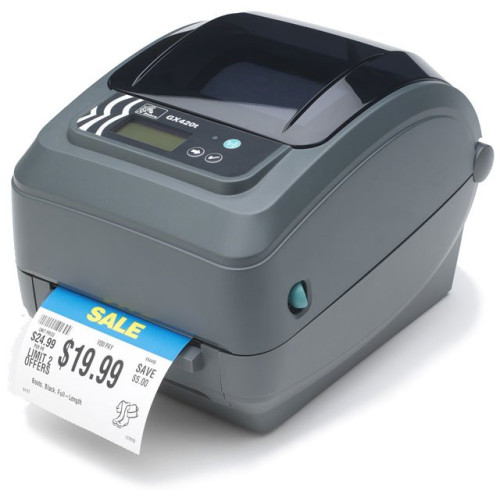

Zebra GX420t Barcode Label Printer
Part #: GX42-102811-000 | SKU: ZEB146026

The best-in-class Zebra GX420t thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.

Zebra GX420t Barcode Label Printer

Part Details: GX420T TT USB/SER/BLTH DISP AUTOSENSING ENHANCED
Need a different version of the Zebra GX420t Barcode Label Printer? View all 78 configurations

Additional Information

Brand (Incoming new front-end MFG) No
Filter No
Interface Options USB
Manufacturer Zebra
Maximum Print Width 4.09
Model Name GX420t
Print Method No
Print Resolution No
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5
Zebra GX420t Specs Zebra GX420t Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Auto-calibration
    • Odometer
    • Dispenser
    • Peel Facility
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-14
    • Industrial 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI-3
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UCC 128
    • EAN 128
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • Aztec Code
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Micro PDF-417
    • PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: G Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420t
  • Product Name: GX420t Desktop Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • GX420t Desktop Printer
    • USB Cable
    • User and Programming Manuals
    • Software & Driver CD
    • USA Power Cords
    • GX420t Desktop Printer
    • USB Cable
    • User and Programming Manuals
    • Software & Driver CD
    • USA Power Cords
  • Certifications & Standards:
    • Unicode
    • PFC
    • FCC Part 15
    • Subpart 15
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN6100-3-2
    • EN6100-3-3
    • EN55024
    • CCC
    • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
    • TUV NRTL
    • IRAM
    • NOM
    • AAMI

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Gap
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
    • Direct Thermal Label
    • Wristband
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Adjustable Media Sensor
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.55"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL
    • XML
    • EPL II
    • ZPL 1
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
