Zebra GC420d Barcode Label Printer Zebra GC420d Barcode Label Printer Zebra GC420d Barcode Label Printer Zebra GC420d Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

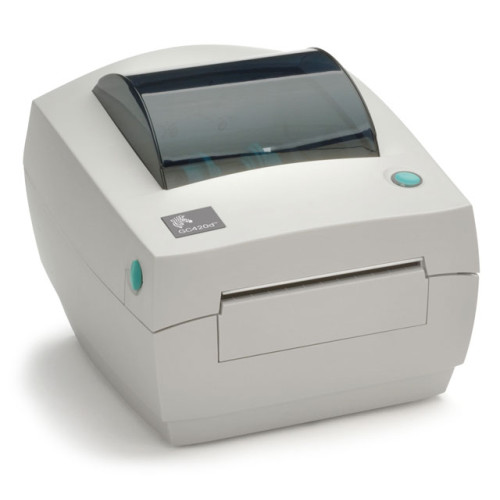

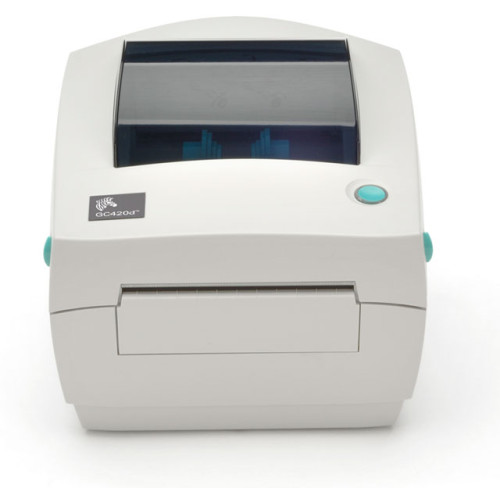

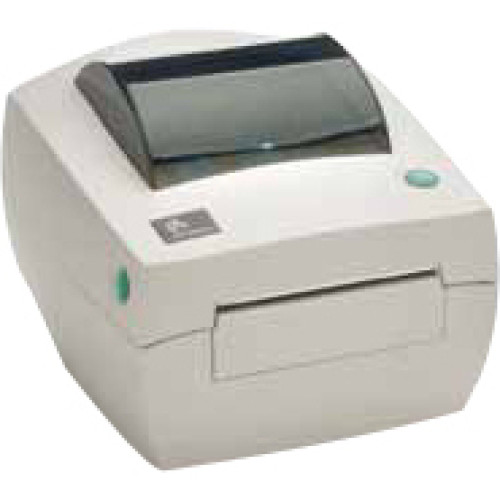

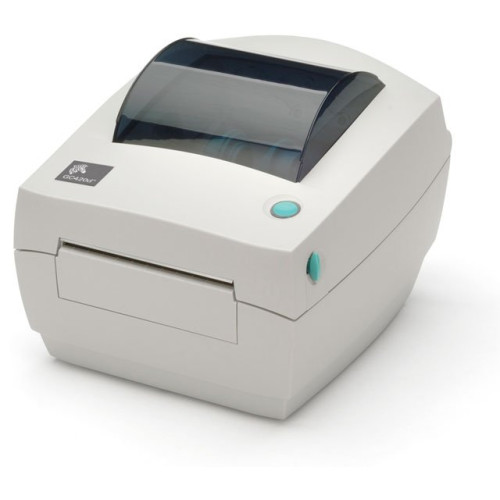

Zebra GC420d Barcode Label Printer
Part #: GC420-200510-000 | SKU: ZEB188791

The GC420d provides excellent value performance based on a customer-proven mechanical design. Built to be efficient and keep operations moving, the GC420 offers features that are typically found only in higher end products.

Zebra GC420d Barcode Label Printer

Part Details: Direct thermal - 4" print width - 203 dpi - tear bar - RS-232 serial - USB 1.1 - Centronics parallel - 8MB standard flash - 8MB standard SDRAM - EPL/ZPL II - North America power cord
Need a different version of the Zebra GC420d Barcode Label Printer? View all 6 configurations

Additional Information

Brand (Incoming new front-end MFG) Zebra
Filter No
Included Features EPL, ZPL2
Interface Options Parallel, USB, Serial (RS-232)
Label Core 1 inch
Labels Per Day No
Manufacturer Zebra
Max Label Width 4"
Max Roll Outer Diameter 5
Maximum Print Width 4
Model Name GC420d
Print Method Direct Thermal
Print Resolution 203 dpi
Print Speed 4
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch
Zebra GC420d Specs Zebra GC420d Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • EAN-14
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • POSTNET
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • RSS
    • RSS14 Limited
    • RSS14 Stacked
    • RSS14 Truncated
    • UCC/EAN 128
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • UPC-A
    • UCP-E
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GC420d
  • Product Name: GC420d Desktop Printer

Physical Characteristics

  • Height: 6.7"
  • Width: 7.9"
  • Depth: 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • GC420d Desktop Printer
    • USA Cord
    • User Documentation
    • GC420d Desktop Printer
    • USA Cord
    • User Documentation
  • Certifications & Standards:
    • PFC
    • TUV-R NRTL
    • TUV-R CB
    • NOM
    • KCC
    • CE
    • FCC Class-B

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Fanfold
    • Roll Fed
    • Tag Stock
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
