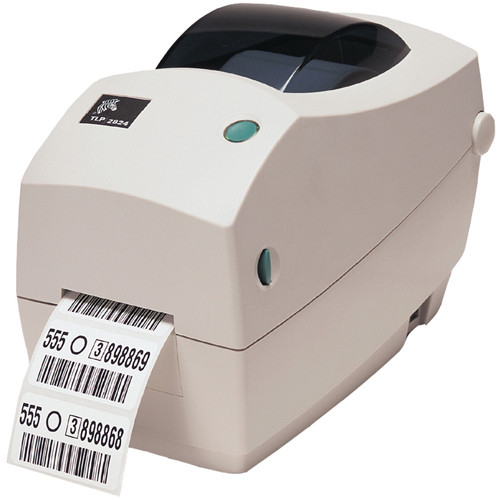

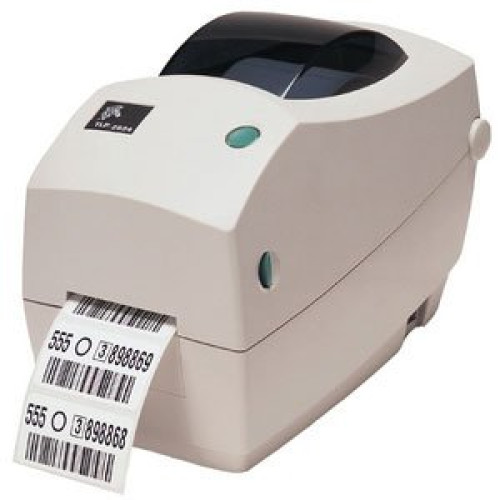

Zebra TLP 2824 Plus Barcode Label Printer Zebra TLP 2824 Plus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra TLP 2824 Plus Barcode Label Printer
Part #: 282P-101510-000 | SKU: ZEB81697

With one of the smallest footprints of any two-inch desktop printer in the industry the LP and TLP 2824 fit into places other printers cannot without sacrificing speed print quality or media capacity. This space conservation is great for the typically congested areas around cash registers desks and countertops.For easy integration with existing systems and a variety of applications the LP-TLP 2824 printers also offer the widest range of interface choices including serial parallel USB internal or external Ethernet with the ZebraNet PrintServer II option and an optional cash drawer kicker interface (LP only). Their sturdy dual-wall high-density plastic construction ensure they will survive punishment that would damage other printers in their class. A full five-inch media roll is easily loaded into the LP-TLP 2824 printers thanks to the OpenACCESS design and media usage can be monitored through the clear top cover.

Zebra TLP 2824 Plus Barcode Label Printer

Part Details: Desktop Printer - Zebra TLP 2824 Plus - Thermal Transfer - 203 dpi - 4ips - USB/Ethernet - EPL/ZPL - Includes US Power Cord
Need a different version of the Zebra TLP 2824 Plus Barcode Label Printer? View all 18 configurations

Additional Information

Brand (Incoming new front-end MFG) No
Filter No
Included Features No
Interface Options Ethernet, USB
Label Core No
Labels Per Day No
Manufacturer Zebra
Max Label Width 2.25, 2.36, 2.40
Max Roll Outer Diameter 5
Maximum Print Width 2.20, 2.25
Model Name TLP 2824 Plus
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5, 1
Zebra TLP 2824 Plus Specs Zebra TLP 2824 Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Plessey
    • POSTNET
    • RSS-14
    • Standard 2 of 5
    • UPC-A
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC/EAN 128
    • MSI-3
    • German Post Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2824 Plus
  • Product Name: TLP 2824 Plus Thermal Label Printer

Physical Characteristics

  • Height: 7"
  • Width: 5.3"
  • Depth: 9.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Form
    • Continuous Receipt
    • Die-cut Label
    • Gap
    • Fanfold
    • Linerless
    • Notch
    • Notched
    • Perforated Paper
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
  • Media Thickness: 7 mil
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • Reset feature button
    • 32 bit RISC processor
    • Auto calibration of media
    • Certified Microsoft Windows drivers
    • Odometer for printer length tracking
    • Construction: ABS double-walled casing
    • OpenACCESS design for easy media loading
    • Unicode compliant for multi-language printing

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
