Zebra TLP 2824 Plus Barcode Label Printer Zebra TLP 2824 Plus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

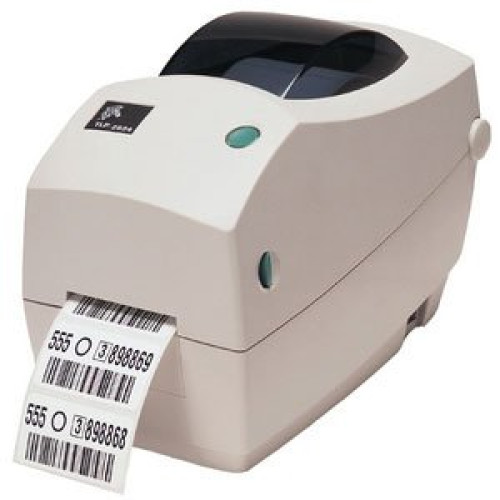

Zebra TLP 2824 Plus Barcode Label Printer
Part #: 282P-101120-000 | SKU: ZEB168788

With one of the smallest footprints of any two-inch desktop printer in the industry the LP and TLP 2824 fit into places other printers cannot without sacrificing speed print quality or media capacity. This space conservation is great for the typically congested areas around cash registers desks and countertops.For easy integration with existing systems and a variety of applications the LP-TLP 2824 printers also offer the widest range of interface choices including serial parallel USB internal or external Ethernet with the ZebraNet PrintServer II option and an optional cash drawer kicker interface (LP only). Their sturdy dual-wall high-density plastic construction ensure they will survive punishment that would damage other printers in their class. A full five-inch media roll is easily loaded into the LP-TLP 2824 printers thanks to the OpenACCESS design and media usage can be monitored through the clear top cover.

Zebra TLP 2824 Plus Barcode Label Printer

Part Details: Desktop Printer - Zebra TLP 2824 Plus - Thermal Transfer - 203 dpi - 4ips - USB/Serial - EPL/ZPL - Includes EU/UK Power Cords
Need a different version of the Zebra TLP 2824 Plus Barcode Label Printer? View all 18 configurations

Additional Information

Brand (Incoming new front-end MFG) No
Included Features No
Interface Options USB
Label Core No
Manufacturer Zebra
Max Label Width 2.25, 2.36
Max Roll Outer Diameter 5
Maximum Print Width 2.20, 2.25
Model Name TLP 2824 Plus
Print Method No
Print Resolution No
Print Speed No
Product Condition No
Ribbon Core 1
Zebra TLP 2824 Plus Specs Zebra TLP 2824 Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Plessey
    • POSTNET
    • RSS-14
    • Standard 2 of 5
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • EAN-14
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC/EAN 128
    • MSI-3
    • German Post Code
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code
    • BC412

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2824 Plus
  • Product Name: TLP 2824 Plus Thermal Label Printer

Physical Characteristics

  • Height: 7"
  • Width: 5.3"
  • Depth: 9.5"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Form
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Gap
    • Notch
    • Notched
    • Perforated Paper
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
    • Cover Open Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • Reset feature button
    • Auto calibration of media
    • Certified Microsoft Windows drivers
    • Odometer for printer length tracking
    • Construction: ABS double-walled casing
    • Unicode compliant for multi-language printing
    • 32 bit RISC processor for high throughput
    • OpenACCESS design for easy media loading

Fonts & Emulation

  • Language Emulation:
    • EPL
    • EPL2
    • ZPL II

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 220 V AC
  • Power Source: AC Supply
Extended Details
