Zebra 2746e Barcode Label Printer Zebra 2746e Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

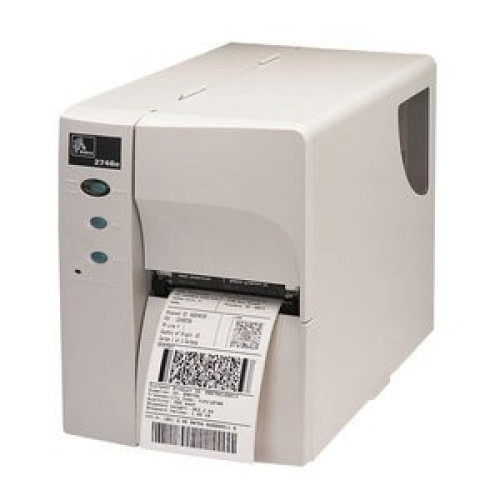

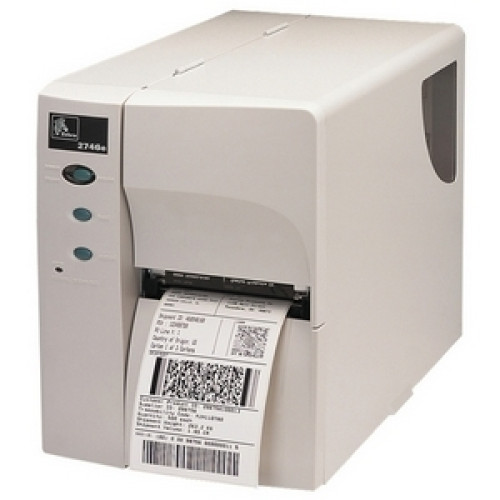

Zebra 2746e Barcode Label Printer
Part #: 274E-10312-0010 | SKU: ZEB6705

The steel-enclosed 2746e represents an affordable basic bar code print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial parallel new USB and internal Ethernet option) upgraded electronics improved ribbon spindle design additional memory and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing-distribution air freight-parcel tracking manufacturing and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable full-size easy-to-use 4 inch (101.6 mm) printer.

Zebra 2746e Barcode Label Printer

Part Details: Thermal transfer & direct thermal, 203 dpi, 6 ips, 4" print width, parallel, serial & USB interfaces, 512KB SRAM, 1MB flash. Includes US power cord & cutter. Order cables separately. See accessories.
Need a different version of the Zebra 2746e Barcode Label Printer? View all 5 configurations

Additional Information

Filter No
Included Features Cutter
Interface Options Parallel, USB
Label Core No
Manufacturer Zebra
Max Label Width 4.10
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Model Name 2746e
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Zebra 2746e Specs Zebra 2746e Specs (pdf)

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x DB-9 RS-232C Serial
    • 1 x USB
    • 1 x 36-Pin Centronics Parallel
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.13"
  • Maximum Label Length: 22"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ASCII EPL2
    • EPL II
  • Input Voltage:
    • 120 V AC
    • 230 V AC
  • RAM Memory: 512KB
  • Flash Memory: 1MB
  • Mobile Printer: No

General Information

  • Manufacturer: Zebra
  • Product Name: 2746e Label Printer

Physical Characteristics

  • Dimensions: 12.38" (314.45mm) x 9.5" (241.3mm) x 16.75" (425mm)
  • Weight: 28.6 lb (12.97 kg)
  • Shipping Weight: 36lb (16.33kg)

Included Features

  • Included Features:
    • Dispenser
    • Cutter

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Other

  • Package Contents:
    • 2746e Label Printer
    • US Power Cord
    • User Documentation: English/US

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Agency Approvals

  • Agency Approvals: FCC UL CE VCCI CB C-Tic EN55022 CISPR22B EN50082-1 EN60950 IEC 950
Extended Details
