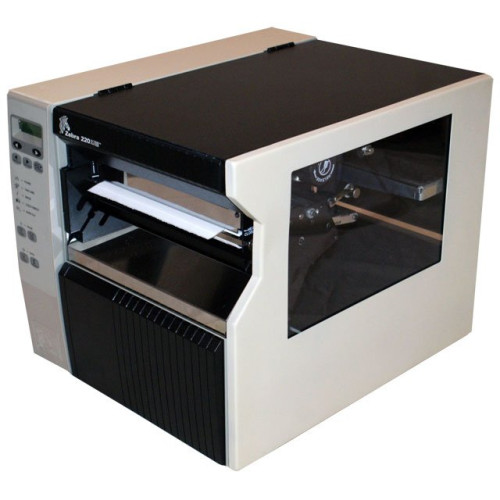

Zebra 220XiIIIPlus Barcode Label Printer Zebra 220XiIIIPlus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra 220XiIIIPlus Barcode Label Printer
Part #: 223-7A1-00200 | SKU: ZEB47572

The 220XiIII quickly prints labels up to 8.5 inches wide at 10 inches per second (ips). It is ideal for wide label applications such as printing chemical drum labels primary metal standard labels automotive industry labels banner-sized labels and pallet and container shipping labels.

Zebra 220XiIIIPlus Barcode Label Printer

Part Details: Zebra 220XiIIIPlus Thermal Label Printer - Monochrome - 6 in/s Mono - 300 dpi - Serial, USB
Need a different version of the Zebra 220XiIIIPlus Barcode Label Printer? View all 43 configurations

Additional Information

Filter No
Interface Options Ethernet, USB
Label Core No
Manufacturer Zebra
Max Label Width 8.80
Max Roll Outer Diameter 8
Maximum Print Width 8.50
Model Name 220XiIIIPlus
Print Method No
Print Resolution No
Print Speed 10
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Zebra 220XiIIIPlus Specs Zebra 220XiIIIPlus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • UPC-E
    • UPC-A
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: XiIIIPlus
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220XiIIIPlus
  • Product Name: 220XiIIIPlus Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.7"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 220XiIIIPlus Label Printer
    • 120 VAC North American Edition Power Cord
    • User Guide
    • Utility CD
    • 220XiIIIPlus Label Printer
    • 120 VAC North American Edition Power Cord
    • User Guide
    • Utility CD
  • Certifications & Standards:
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
  • Additional Information:
    • 300 unique darkness settings
    • Advanced media/ribbon counter
    • North American Edition, 120 VAC Cord
    • Clear Media Side Door and Media Hanger
    • Transmissive and reflective media sensors
    • Enhanced Alert notification monitors printhead condition
    • Multi-level Element Energy Equalizer (E3) for superior print quality

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Label
  • Media Size:
    • Letter - 8.50" x 11"
    • Custom Size - 8.80"
    • 8.80"
    • 4.25"
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
Extended Details
