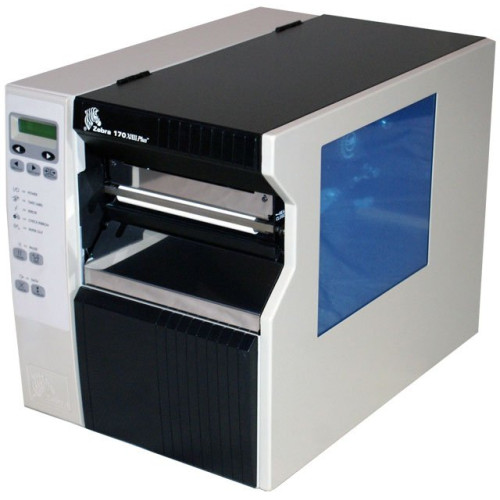

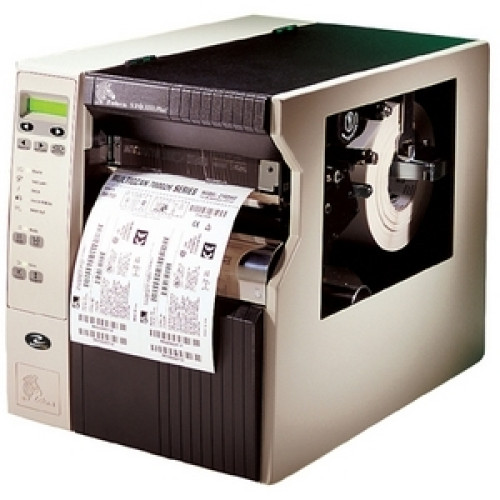

Zebra 170XiIIIPlus Barcode Label Printer Zebra 170XiIIIPlus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra 170XiIIIPlus Barcode Label Printer
Part #: 172-701-00100 | SKU: ZEB62117

The industrial-strength 170XiIIIPlus with 203- or 300-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Zebra 170XiIIIPlus Barcode Label Printer

Part Details: Zebra 170XiIIIPlus Thermal Label Printer - Monochrome - 8 in/s Mono - 203 dpi - USB, Serial, Parallel
Need a different version of the Zebra 170XiIIIPlus Barcode Label Printer? View all 73 configurations

Additional Information

Filter No
Interface Options Parallel, USB
Label Core No
Manufacturer Zebra
Max Label Width 7.10
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name 170XiIIIPlus
Print Method No
Print Resolution No
Print Speed 8
Printer Mobility No
Printer Type Industrial
Product Condition No
Zebra 170XiIIIPlus Specs Zebra 170XiIIIPlus Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal (DT)
    • Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
    • 1 x USB
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7.1"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions: 15.5" (393.7mm) x 13.15" (334.01mm) x x 19.5" (495mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Cutter

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CB
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN6100-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • 170XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
