Zebra 170XiIIIPlus Barcode Label Printer Zebra 170XiIIIPlus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

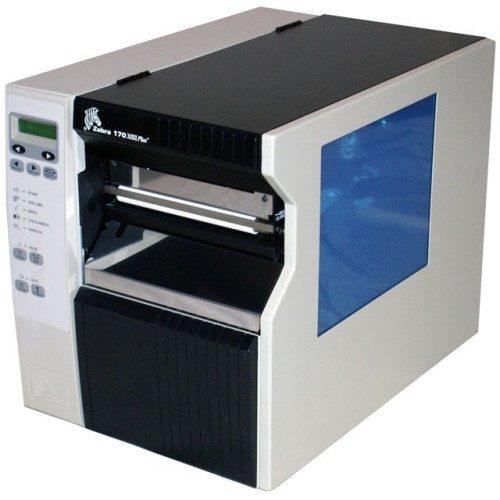

Zebra 170XiIIIPlus Barcode Label Printer
Part #: 170-741-00200 | SKU: ZEB8931

The industrial-strength 170XiIIIPlus with 203- or 300-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Zebra 170XiIIIPlus Barcode Label Printer

Part Details: 170XiIIIPlus Direct Thermal-Thermal Transfer Barcode Printer (300 dpi, 6.6 Inch Print Width, 8 ips Print Speed, Serial, PrintServerII and USB Interfaces, 16MB SDRAM, 4MB Flash and Rewind)
Need a different version of the Zebra 170XiIIIPlus Barcode Label Printer? View all 73 configurations

Additional Information

Filter No
Interface Options Ethernet, USB
Label Core No
Manufacturer Zebra
Max Label Width 7.10
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name 170XiIIIPlus
Print Method No
Print Resolution No
Print Speed 8
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Zebra 170XiIIIPlus Specs Zebra 170XiIIIPlus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 93
    • Code 39
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170XiIIIPlus
  • Product Name: 170XiIIIPlus Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.2"
  • Depth: 19.5"

Other

  • Platform Supported: PC
  • Package Contents:
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
  • Certifications & Standards:
    • Class B
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
  • Additional Information:
    • Temperatures:
    • Operating temperature 41° F to 104° F Thermal transfer
    • Operating temperature 32° F to 104° F Direct thermal
    • Media Sensors:
    • Reflective
    • Transmissive

Media Types & Handling

  • Maximum Label Width: 6.60"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
  • Media Thickness: 120 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
Extended Details
