Zebra 170XiIIIPlus Barcode Label Printer Zebra 170XiIIIPlus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

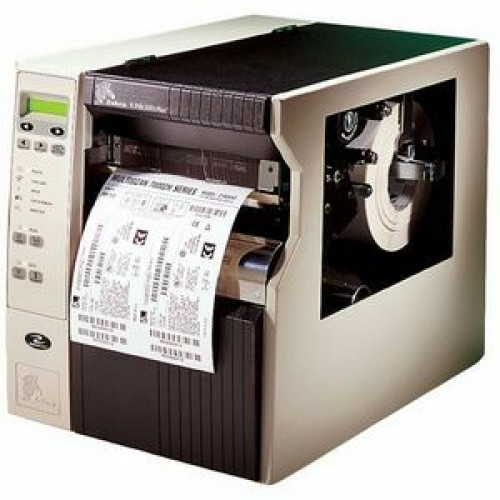

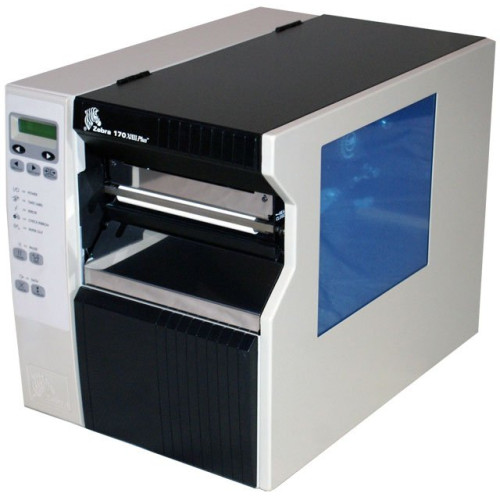

Zebra 170XiIIIPlus Barcode Label Printer
Part #: 170-701-00000 | SKU: ZEB5836

The industrial-strength 170XiIIIPlus with 203- or 300-dpi print resolution can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches per second (ips), promoting greater productivity with less roll changes or execute intricate, high resolution print applications at a quick eight ips. With its all metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels, pallet shipping/receiving labels either on demand or in batches. The 170XiIIIPlus is designed to deliver maximum performance and reliability in your most demanding industrial applications.

Zebra 170XiIIIPlus Barcode Label Printer

Part Details: Thermal transfer Barcode printer (300 dpi, 6.6 inch Print width, 8 ips Print speed, Serial, Parallel and USB Interfaces, 16MB SDRAM and 4MB Flash)
Need a different version of the Zebra 170XiIIIPlus Barcode Label Printer? View all 73 configurations

Additional Information

Filter No
Interface Options Parallel, USB
Label Core No
Manufacturer Zebra
Max Label Width 7.10
Max Roll Outer Diameter 8
Maximum Print Width 6.60
Model Name 170XiIIIPlus
Print Method No
Print Resolution No
Print Speed 8
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Zebra 170XiIIIPlus Specs Zebra 170XiIIIPlus Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x USB
    • 1 x Parallel
    • 1 x Serial
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 6.6"
  • Maximum Label Length: 39"
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions: 15.5" (393.7mm) x 13.15" (334.01mm) x 19.5" (495.3mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features:
    • Clear Media Slide Door & Media Hanger
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • Class B
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • BAR-ONE Lite/Platinum demo
    • JefForm Central ERP Solution
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra 170XiIIIPlus Barcode Label Printer

  • Cables To Go Accessory
    Part #: 13400 | SKU: 143521

    Cables, 10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $16.96

  • Cables To Go Accessory
    Part #: 13172 | SKU: 143509

    Cables, 6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    Price: $16.58

  • Zebra Cables Accessory
    Part #: 52184 | SKU: ZEB207926

    Cables - Connectors - and Adapters - Zebra - 9-Pin Male To 9-Pin Female - 6-Foot
    Price: $22.41

  • Cables To Go Accessory
    Part #: 3019 | SKU: 143489

    Cables, Serial printer cable, 9-pin to 25-pin, 6 ft. Replaces (Part# PCM-1970-06).
    Price: $18.40

  • Zebra 170XiIIIPlus Accessory
    Part #: 41034 | SKU: ZEB181204

    Printer Spare Parts - Zebra - Head Pivot Bar - 600DPI.
    MSRP: $96.99 Price: $73.94
View All Options

Recommended Labels for Model: Zebra 170XiIIIPlus Barcode Label Printer

View All Options

Recommended Printheads for Model: Zebra 170XiIIIPlus Barcode Label Printer

View All Options

Recommended Ribbons for Model: Zebra 170XiIIIPlus Barcode Label Printer

View All Options

Recommended Warranties for Model: Zebra 170XiIIIPlus Barcode Label Printer

  • Zebra Service Contracts Service Contract
    Part #: ZB4-1700-300 | SKU: ZEB67176

    Service Contract - 3 year, 170XI On-site 3 year MAINTENANCE ADVANTAGE PLUS
    Price: $2,322.00

  • Zebra Service Contracts Service Contract
    Part #: ZA1-1700-3C0 | SKU: ZEB67018

    Service Contract - 3 year, 170XI On-site 3 year WARRANTY ADVANTAGE, COMPREHENSIVE

  • Zebra Service Contracts Service Contract
    Part #: NSC-OSMC-ZEB-36 | SKU: ZEB17518

    Service Contract - 3 year, 3-Year On-Site Service Plan for Zebra Printers. On-site repair within 48 hours. Includes 2 cleanings per year.

  • Zebra Service Contracts Service Contract
    Part #: NSC-DMC-ZEB-36 | SKU: ZEB17520

    Service Contract - 3 year, 3 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.

  • Zebra Service Contracts Service Contract
    Part #: NSC-OSMC-ZEB-24 | SKU: ZEB24230

    Service Contract - 2 year, 2-Year On-Site Service Plan for Zebra Printers. On-site repair within 48 hours. Includes 2 cleanings per year.
View All Options
