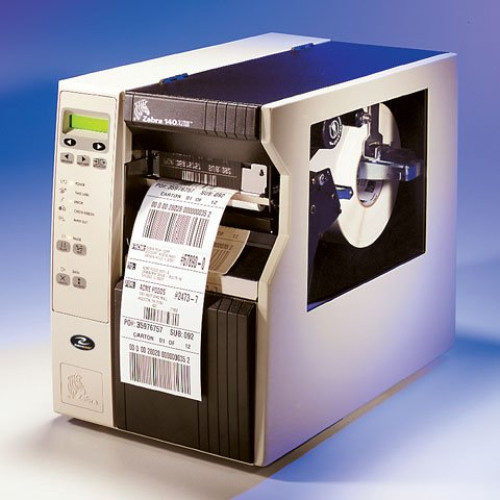

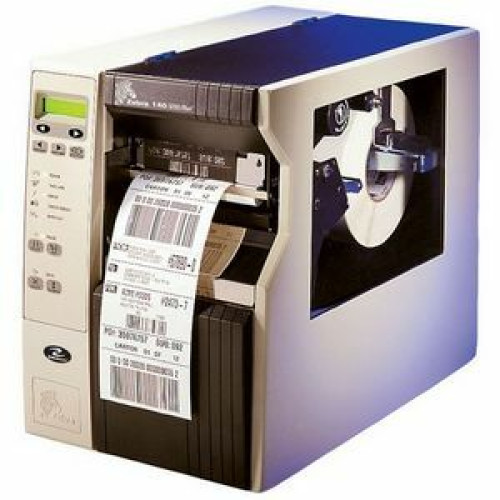

Zebra 140XiIIIPlus Barcode Label Printer Zebra 140XiIIIPlus Barcode Label Printer
Zebra Labels, Scanners, Mobile Computers & Printers

Zebra 140XiIIIPlus Barcode Label Printer
Part #: 140-701-00200 | SKU: ZEB4912

The 140XiIII is the fastest printer in Zebra's Xi Series printing at up to 12 inches per second (ips). With such powerful performance and steel construction it is the ideal choice for high-volume mission-critical applications with 24-hour duty cycles. The 140XiIII is also well-suited for applications in which labels are required quickly either on demand or in batches.

Zebra 140XiIIIPlus Barcode Label Printer

Part Details: 140XiIIIPlus Direct Thermal-Thermal Transfer Bar Code Printer (203 dpi, 5.04 Inch Print Width, 12 ips Print Speed, 16MB SDRAM, 4MB Flash, Serial, Parallel and USB Interfaces with Rewind)
Need a different version of the Zebra 140XiIIIPlus Barcode Label Printer? View all 44 configurations

Additional Information

Filter No
Included Features Internal Rewind
Interface Options Parallel, USB
Label Core No
Manufacturer Zebra
Max Label Width 5.51
Max Roll Outer Diameter 8
Maximum Print Width 5.04
Model Name 140XiIIIPlus
Print Method No
Print Resolution No
Print Speed 12
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1
Zebra 140XiIIIPlus Specs Zebra 140XiIIIPlus Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.63"
  • Maximum Label Length: 39"
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Rewinder
    • Clear Media Slide Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • CCC
    • BSMI
    • Class B
    • FCC Class B
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • EN55022: 1998 Class B
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • EN55024: 1998; EN61000-3-2, 3 w/amendment A12
    • IEC 950/EN60950: 1992 w/amendments 1 through 4 (CB Scheme)
    • Bi-National UL 60950 Third Edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 140Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • BAR-ONE Lite/Platinum demo
    • JefForm Central ERP Solution
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 40°C (104°F) Operating - Thermal Transfer
    • 0°C (32°F) to 40°C (104°F) Operating - Direct Thermal
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Zebra 140XiIIIPlus Barcode Label Printer

  • Cables To Go Accessory
    Part #: 13400 | SKU: 143521

    Cables, 10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
    Price: $16.96

  • Cables To Go Accessory
    Part #: 13172 | SKU: 143509

    Cables, 6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
    Price: $16.58

  • Zebra Cables Accessory
    Part #: 52184 | SKU: ZEB207926

    Cables - Connectors - and Adapters - Zebra - 9-Pin Male To 9-Pin Female - 6-Foot
    Price: $22.41

  • Cables To Go Accessory
    Part #: 3019 | SKU: 143489

    Cables, Serial printer cable, 9-pin to 25-pin, 6 ft. Replaces (Part# PCM-1970-06).
    Price: $18.40

  • Zebra 110XiIIIPlus Accessory
    Part #: 46693 | SKU: ZEB59585

    Printer Spare Parts - Zebra - Power Cord 79In DTChbl.
    Price: $24.23
    See Price in Cart (Why?)
View All Options

Recommended Labels for Model: Zebra 140XiIIIPlus Barcode Label Printer

View All Options

Recommended Printheads for Model: Zebra 140XiIIIPlus Barcode Label Printer

  • Zebra Printheads Printhead
    Part #: G48000M | SKU: ZEB4785

    Printhead Kit For Printer Model 140XiII & 140XiIII, Print Resolution 203 dpi

  • Zebra Printheads Printhead
    Part #: 40000M-JH | SKU: ZEB23984

    140XiIII, Replacement printhead, 203 dpi.

  • Zebra Printheads Printhead
    Part #: 48000M | SKU: ZEB66234

    Zebra Printhead - Direct Thermal, Thermal Transfer
View All Options

Recommended Ribbons for Model: Zebra 140XiIIIPlus Barcode Label Printer

View All Options

Recommended Warranties for Model: Zebra 140XiIIIPlus Barcode Label Printer

  • Zebra Service Contracts Service Contract
    Part #: ZB4-1400-200 | SKU: ZEB67168

    Zebra ZebraCare - 2 Year - Service - On-site - Maintenance - Physical Service
    Price: $1,548.00

  • Zebra Service Contracts Service Contract
    Part #: ZB4-1400-1C0 | SKU: ZEB67167

    Zebra ZebraCare - 1 Year - Service - On-site - Maintenance - Physical Service

  • Zebra Service Contracts Service Contract
    Part #: NSC-OSMC-ZEB-36 | SKU: ZEB17518

    Service Contract - 3 year, 3-Year On-Site Service Plan for Zebra Printers. On-site repair within 48 hours. Includes 2 cleanings per year.

  • Zebra Service Contracts Service Contract
    Part #: NSC-DMC-ZEB-36 | SKU: ZEB17520

    Service Contract - 3 year, 3 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.

  • Zebra Service Contracts Service Contract
    Part #: NSC-OSMC-ZEB-24 | SKU: ZEB24230

    Service Contract - 2 year, 2-Year On-Site Service Plan for Zebra Printers. On-site repair within 48 hours. Includes 2 cleanings per year.
View All Options
