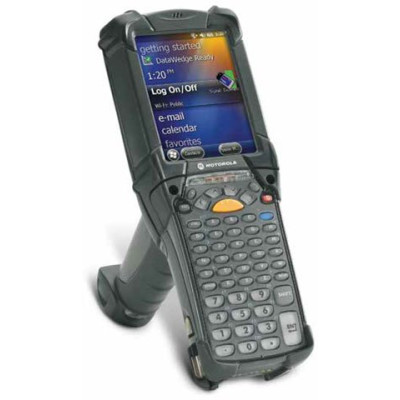

Zebra MC9200 Mobile Computer

Communications

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Frequency range1
802.11a – 5.0 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz, 2.4 or 5.0 Ghz for 802.11n, 5GHz

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 65 Mbps

Security
WPA2 Enterprise, 802.1x;
EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5);
PEAP (TLS, MSCHAPv2, EAP-GTC);
LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6

Antenna
Internal

WLAN
802.11a/b/g/n

Performance characteristics

Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0, Microsoft® Windows Embedded Handheld 6.5.3

Expansion
User accessible 32GB SDHC card slot

Data capture options
SE965: 1-D standard range scan engine; view ambient lighting information, located in User Environment

SE1524-ER: 1-D extended range scan engine reads up to 45 ft./13.72 m away; view ambient lighting information, located in User Environment

SE4500: Omnidirectional 1-D/2-D imaging engine

SE4600: Extended range omnidirectional 1-D/2-D imaging engine reads as far as 30 ft./9.14 m

SE4500-DL: 1-D/2-D DL imaging engine reads 1-D, 2-D and PDF codes on driver’s licenses

SE4500-HD: 1-D/2-D DPM imaging engine reads a wide variety of DPM marks on metal, plastic and glass surfaces

App development
PSDK and EMDK available through Zebra Support Portal

Memory
512MB/2GB standard; 1GB/2GB (premium models only)

Processor (CPU)
Dual core 1GHz OMAP 4 processor

Physical characteristics

Scanner exit window
Gorilla™ Glass

RFID Tag
Integrated UHF Gen2 tag (premium models only)

Keyboard
28-, 43- and 53-key; Terminal Emulation (5250, 3270, VT)

Dimensions (HxWxD)
9.1 in. L x 3.6 in. W x 7.6 in. H
23.1 cm L x 9.1 cm W x 19.3 cm H

IST
Sensor technology (premium models only)

Display type
3.7 in VGA resolution; color

Weight
27 oz./765 g (includes battery)

Power

Extended capacity battery
Removable, rechargeable 7.2 volt Lithium Ion 2200 mAh battery pack, 15.8 watt hours

Regulatory specifications

LED Safety
IEC/EN60825-1 and IEC/EN62471

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C; Canada: RSS-102; EU: EN62311, EN50371

Environmental
RoHS-compliant

EMI/RFI
USA: FCC Part 15; Canada: RSS-210, ICES 003 Class B; EU: EN 301 489-1, EN 301 489-17, EN55022 Class B, EN55024

WLAN and Bluetooth (PAN)
USA: FCC Part 15.247, 15.407; Canada: RSS-210 EU: EN 300 328, EN 301 893

Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, Certified to UL60950-1

User environment

Environmental sealing
IP64 (electronic enclosure, display, keypad)

Drop specification
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
-4° to 122° F/-20° to 50° C

Tumble specifications
2, 000 3.28 ft./1 m tumbles at room temperature per IEC Tumble Specification

Humidity
5% to 95% non condensing (Condensation Resistant Configurations Available)

Charging temperature
32° to 104° F/0° to 40° C
