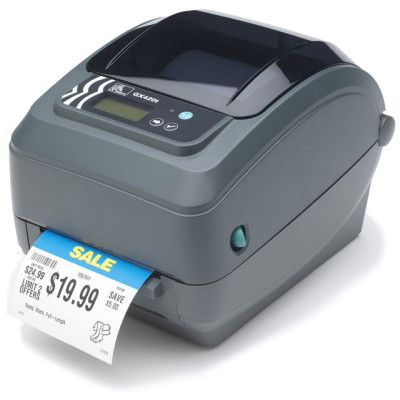

Zebra GX420t Barcode Label Printer

The best-in-class Zebra GX420t thermal transfer printer offers the widest range of features, and fast 6 ips print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Print method: Thermal transfer
Resolution: 203 dpi (8 dots/mm)
Print speed: up to 6" (152 mm) per second
Optional Ethernet, Wi-Fi (802.11b/g), and Bluetooth interfaces
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing
Optional Cutter, Dispenser, and Language Fonts

Zebra GX420t Specs (pdf)

Zebra GX420t Driver (download)

Standard Features

Print speed: up to 6" (152 mm) per second
Print method: direct thermal/thermal transfer
EPL and ZPL programming languages standard

More Standard Features

OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory

Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)

Print width: 4.09" (104 mm)
Print length: 39" (991 mm)
Print speed: 6" (152 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.25" (108 mm)
Minimum label and liner width: 0.75" (19 mm)
Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter: 5" (127 mm)
Core diameter: 0.5" (12.7), 1.0" (25.4 mm), 1.5" (37.1 mm)
Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Ribbon Characteristics

Outside diameter: 1.34" (34 mm)
Standard length: 244' (74 m)
Ratio: 1:1
Ribbon width

Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.3" (110 mm)

ID Core: 0.5" (12.7 mm)

Operating Characteristics

Operating temperature TT: Operating temperature 40F (5C) to 105F (41C) Thermal transfer
DT: Operating temperature: 40F (5C) to 105F (41C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals

FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI

Physical Characteristics

Width: 7.6" (194 mm)
Height: 7.5" (191 mm)
Depth: 10" (254 mm)
Weight: 4.6 lbs (2.1 kg)
Shipping weight: 9.1 lbs (4.1 kg)
Orientation Center

Programming Languages

Core programming languages: EPL2, ZPL I/ZPL II

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8 and EAN-13 with 2 or 5 digit extensions
EAN-8
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics

16 resident expandable ZPL II bitmap fonts
One resident scalable ZPL font
Five resident expandable EPL2 bitmap fonts
Supports user-defined fonts and graphics - including customer logos
