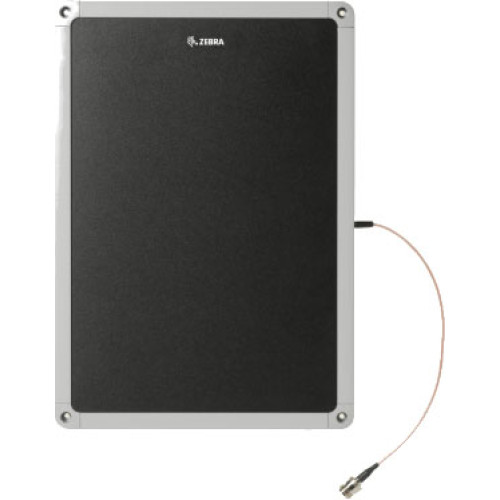

Zebra AN620 RFID Antenna

The AN620 features a simple, integrated mounting system that lets it stand just under one-half inch (12 mm) from horizontal or vertical mounting surfaces. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.

Starting at: Price: $314.96

See all options

Specs & Info
All Options

Front to back ratio: 22 dB
Axial ratio < 2 dB
Gain: 4.0 dBiL
3 dB beam width: 75 degrees horizontal, 48 degrees vertical
Power: 6 watts (max. input)
Voltage Standing Wave Ratio (VSWR) 1.4: 1
Frequency range 902-928 MHz, 864-868 MHz (EU version)
Integrated mounting holes
Type "N" Female connection
Polarization: LHCP

Zebra AN620 Specs (pdf)

Refine Your Options

Zebra AN620 RFID Antenna
Part #: AN620-SCL71131US | SKU: ZEB175899

UHF RFID Antenna - Indoor - Far Field - Left Circular Polarization - 4 dBiL - Industrial - Slimline Ultra Low Profile - US Frequency

MSRP: $393.26 Price: $314.96

See Price in Cart (Why?)
Zebra AN620 RFID Antenna
Part #: AN620-SCL71130EU | SKU: ZEB175898

AN620 Slimline Ultra Low Prof Antenna 15.4 X10.8 X0.47 EU

Barcode Discount

Zebra AN620 RFID Antenna

Zebra AN620 RFID Antenna

Zebra AN620 RFID Antenna Part #: AN620-SCL71131US | SKU: ZEB175899

Zebra AN620 RFID Antenna Part #: AN620-SCL71130EU | SKU: ZEB175898
