- Print methods: Thermal transfer or direct thermal
- 32 bit 133 MHz RISC processor
- 8 MB Flash memory""including 2.0 MB user-available non-volatile memory storage for downloadable objects
- Print speeds up to 14"/356 mm per second for increased batch and print/apply productivity
- LCD content and navigation customizable to user needs
- Large, easy-to-use LCD screen simplifies setup
- Flexible connectivity including simultaneous parallel/Ethernet
- Advanced ribbon- and media-low LCD/e-mail alerts
- On-board diagnostic tools and adjustments to ensure optimum print quality
- Internal real-time clock
- Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels
- Clear media side door - easy monitoring of supplies usage without opening the printer systems
- Thin film printhead with Element Energy Equalizer for superior print quality
- Serial RS-232 and bi-directional parallel ports""with auto detect
- Internal ZebraNet 10/100 Print Server (Ethernet)
- Dual media sensors - transmissive and reflective, selectable through software or front panel
Zebra 110Xi4 Specs
Zebra 110Xi4 Driver
Standard Features
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory
Print length: 150" (3810 mm) maximum with 110Xi4 203 dpi using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive
Minimum label and liner width: .79" (20mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: .79" (20mm) to 4.33" (110mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)
Thermal transfer DT: Operating temperature: 32F (0C) to 105F (40C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Codabar
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
Aztec
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
- Print methods: Thermal transfer or direct thermal
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
More Standard Features
- 16 MB SD RAM; 8 MB non-volatile Flash memory
- Automatic media/ribbon sensing capability
- Improved head test for element out
- Auto calibration
- Clear media side door for ease of supplies monitoring
- 300 unique darkness settings
- RS-232, Parallel ports
- USB 2.0 port
- Internal ZebraNet 10/100 PrintServer
- ZPL or ZPL II Programming Language
- XML enabled printing
- Mirror feature allows user-defined printer configurations to be
retrieved from the network
- Create and design customizable printer LCD menus
- Large (240W x 128H pixel), graphical, multilingual, backlit LCD
display
- Transmissive and reflective media sensors
- Multi-level Element Energy Equalizer (E3) for superior print
quality
- Unicode - Compliant
- Intelligent printhead
Printer Specifications
Resolution: 203 dpi (8 dots/mm)300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory
- 16 MB SDRAM
- 8 MB Flash
Print length: 150" (3810 mm) maximum with 110Xi4 203 dpi using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.5" (114mm)Minimum label and liner width: .79" (20mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold
Ribbon Characteristics
Outside diameter: 3.2" (81.3mm)Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: .79" (20mm) to 4.33" (110mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40F (5C) to 105F (40C)Thermal transfer DT: Operating temperature: 32F (0C) to 105F (40C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals
- BSMI
- cTUVus
- CCC
- CE
- C-Tick
- EN55022 Class B
- EN55024
- EN61000-3-2,3
- FCC Class B
- GOST-R
- ICES-003 Class B
- IEC 60950-1 / EN60950
- KCC
- NOM
- S Mark
- STB
- UkrSEPRO
- VCCI
- ZIK
Physical Characteristics
Width: 10.31" (261.9mm)Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)
Related Products
Options- ZebraNet Wireless Plus Print Server
- ZebraNet Internal Wireless Plus (Discontinued)
- Internal IPv6 Print Server
- IBM Twinax interface
- IBM Coax interface
- Rewind with peel
- Cutter
- Bi-fold media door with clear panel
- Media supply spindle for 40 mm cores
- 64MB Flash Memory with ZPL II and XML (with element out
detection)
- 64MB Flash Memory with ZPL II and XML (without element out
detection)
- 16MB SDRAM (Printhead element out detection) with ZPL II and
XML
- Scalable and international fonts
- Applicator interface
- ZebraDesigner
- ZebraDesigner Pro
- ZebraDesigner for XML
- ZebraNet Bridge
- Enterprise Connector
- ZebraNet b/g Print Server
- USB 2.0 port (12 Mbits per second)
- RS-232C/422/485 multi-drop (optional adaptor)
- High-speed, bi-directional, IEEE 1284 parallel
interface
- ZebraNet Wireless Plus Print Server
- ZebraNet 10/100 Print Server
- IBM Twinax interface
- IBM Coax interface
- Applicator interface
- IPV6 Print Server
- ZebraNet b/g Print Server
Programming Languages
Core programming languages: ZPL II, ZPL, XMLBar Codes/Symbologies
Linear Code 11Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Codabar
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
Aztec
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
- Bitmap fonts A through H and GS symbols are expandable up to 10
times, height and width independent
- Smooth scalable font (CG Triumvirate Bold Condensed) is
expandable dot-by-dot, height and width independent
- IBMCode Page 850 International Characters
Refine Your Options
Shop By
Shopping Options
-
Manufacturer
-
Interface Options
-
Printer Type
-
Interface
-
Included Features
-
Maximum Print Width
-
Labels Per Day
-
Print Speed
-

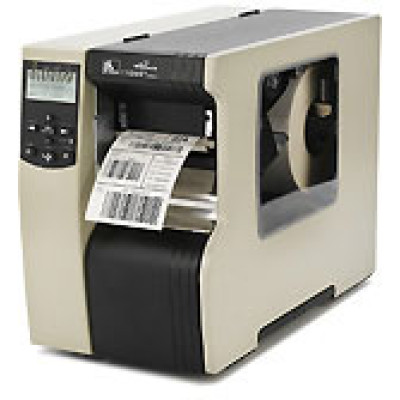

Zebra 110Xi4 Barcode Label Printer
