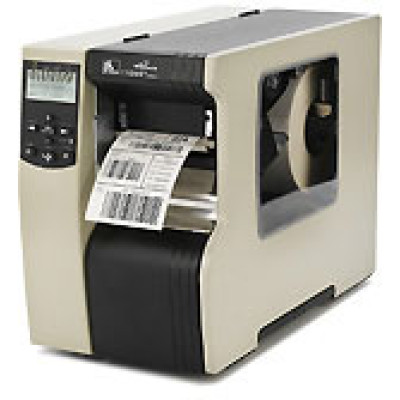

Zebra 110Xi4 Barcode Label Printer

Zebra's built-to-last 110Xi4 series printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Print methods: Thermal transfer or direct thermal
32 bit 133 MHz RISC processor
8 MB Flash memory""including 2.0 MB user-available non-volatile memory storage for downloadable objects
Print speeds up to 14"/356 mm per second for increased batch and print/apply productivity
LCD content and navigation customizable to user needs
Large, easy-to-use LCD screen simplifies setup
Flexible connectivity including simultaneous parallel/Ethernet
Advanced ribbon- and media-low LCD/e-mail alerts
On-board diagnostic tools and adjustments to ensure optimum print quality
Internal real-time clock
Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels
Clear media side door - easy monitoring of supplies usage without opening the printer systems
Thin film printhead with Element Energy Equalizer for superior print quality
Serial RS-232 and bi-directional parallel ports""with auto detect
Internal ZebraNet 10/100 Print Server (Ethernet)
Dual media sensors - transmissive and reflective, selectable through software or front panel

Zebra 110Xi4 Specs (pdf)

Zebra 110Xi4 Driver (download)

Standard Features

Print methods: Thermal transfer or direct thermal
Construction: 12-gauge steel frame
Single 32 bit 133 Mhz RISC processor

More Standard Features

16 MB SD RAM; 8 MB non-volatile Flash memory
Automatic media/ribbon sensing capability
Improved head test for element out
Auto calibration
Clear media side door for ease of supplies monitoring
300 unique darkness settings
RS-232, Parallel ports
USB 2.0 port
Internal ZebraNet 10/100 PrintServer
ZPL or ZPL II Programming Language
XML enabled printing
Mirror feature allows user-defined printer configurations to be retrieved from the network
Create and design customizable printer LCD menus
Large (240W x 128H pixel), graphical, multilingual, backlit LCD display
Transmissive and reflective media sensors
Multi-level Element Energy Equalizer (E3) for superior print quality
Unicode - Compliant
Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory

16 MB SDRAM
8 MB Flash

Print width: 4.0" (102mm)
Print length: 150" (3810 mm) maximum with 110Xi4 203 dpi using continuous media
Print speed: Up to 14" per second
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.5" (114mm)
Minimum label and liner width: .79" (20mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150"
(3810mm) continuous media
Maximum roll diameter: 8.0" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold

Ribbon Characteristics

Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 or 3:1 media roll to ribbon ratios
Ribbon width: .79" (20mm) to 4.33" (110mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40F (5C) to 105F (40C)
Thermal transfer DT: Operating temperature: 32F (0C) to 105F (40C)
Direct thermal Storage temperatures: -40F (-40C) to 140F (60C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals

BSMI
cTUVus
CCC
CE
C-Tick
EN55022 Class B
EN55024
EN61000-3-2,3
FCC Class B
GOST-R
ICES-003 Class B
IEC 60950-1 / EN60950
KCC
NOM
S Mark
STB
UkrSEPRO
VCCI
ZIK

Physical Characteristics

Width: 10.31" (261.9mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)

Programming Languages

Core programming languages: ZPL II, ZPL, XML

Bar Codes/Symbologies

Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Codabar
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
Aztec
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics

Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent
IBMCode Page 850 International Characters
