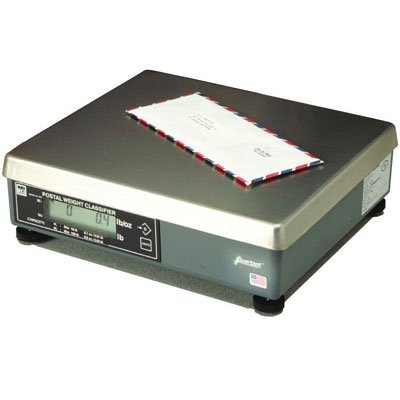

Avery Weigh-Tronix 7620 Scale
Avery Weigh-Tronix Scale Brecknell Scale

Avery Weigh-Tronix 7620 Scale

Avery Weigh-Tronix 7620 Scale

The 7620 uses Quartzell technology to speed performance. The 7620 is NTEP-approved and ideal for Federal Express and UPS shippers, plus USPS first-class and worldwide mailing as well.
Discontinued - Need Assistance
See all options
  • Quartzell transducers provide the highest repeatability for consistent weight measurement.
  • Internal 7 digit, 1/2" high LCD
  • Stainless steel or ABS plastic weight platter.
  • Die-cast aluminum base and loadbridge.
  • Alternate span points can simplify field calibration by using less than full capacity weights.
  • Switch between decimal pounds and pounds/ounces, decimal pounds and kilograms, or pounds/ounces and kilograms
  • Includes 10 ft. DB-9 pin interface cable to connect to your PC
  • Emulation Protocols - Standard NCI default with field configurable settings of A5350D and PS6L
  • Set-up scale to display weight as multi-range, multi-interval or high resolution
7620 Specs 7620 Specs (pdf)
Features & Benefits:
  • Accurate and reliable - Quartzell® transducers provide the highest repeatability for consistent weight measurement.
  • Fast Digital Response - The inherent digital signal allows the scale to weigh faster, improving throughput especially in weight ranges that are critical for flats and small parcels.
  • Simple to Use – Reduces operator training time.
  • Internal Display – 7 digit, 1/2" high (12.7 mm), LCD display.
  • I/O Port – Allows for connection to a computer or a smart terminal.
  • Compact Low Profile Base – Fits easily into any operation and provides convenient mobility.
  • Construction – Stainless steel weigh platter. Painted die-cast aluminum base.
  • Controls – ZERO: With AZT or push button to re-establish zero reference. UNITS: Allows unit switching.
  • Die Cast Load Bridge – Reduces overall scale deflection.
  • Calibration – Alternate span points can simplify field calibration by using less than full capacity weights.
  • High Resolution Mode – Mail and parcels can now be weighed on a single NTEP certified scale, even sensitive international mail, with multi-range weighing.
  • Units Switching – Switch between decimal pounds and pounds/ounces, decimal pounds and kilograms, or pounds/ounces and kilograms.
  • RS-232 Cable – DB-9 pin female connector allows you to connect to a PC.
  • Protocols – Standard NCI, emulates Detecto and Mettler-Toledo.
Extended Details
Refine Your Options
  1. Brecknell 7620 Scale

    Brecknell 7620 Scale
    Part #: 9503-15625 | SKU: 6858

    7620, 100lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
  2. Brecknell 7620 Scale

    Brecknell 7620 Scale
    Part #: 9503-15624 | SKU: 6581

    12 x 14 mailing and parcel shipping scale - 70lb capacity - Includes 10 ft. RS-232 cable

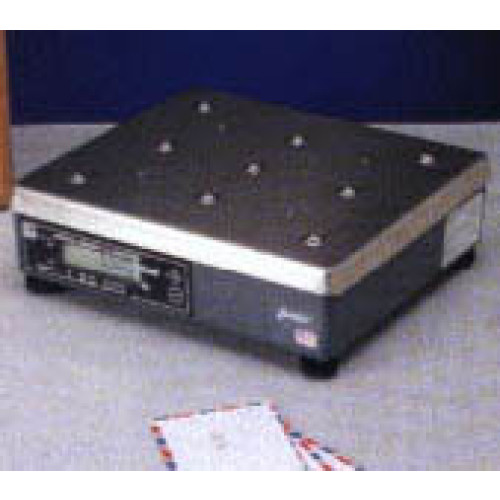

  3. Brecknell 7620 Scale

    Brecknell 7620 Scale
    Part #: 9503-16638 | SKU: 7094

    7620, 100lb (lb/lb-oz switching), 12 x 14 mailing and parcel shipping scale, with ball-top. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
  4. Brecknell 7620 Scale

    Brecknell 7620 Scale
    Part #: 9503-16568 | SKU: 7095

    12 x 14 mailing and parcel shipping scale - 150lb Capacity - lb/lb-oz switching - Includes RS-232 cable
  5. Brecknell 7620 Scale

    Brecknell 7620 Scale
    Part #: 9503-17111 | SKU: 7096

    7620, 150lb (lb/lb-oz switching), 12 x 14 mailing and parcel shipping scale, with ball-top. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).

5 Item(s)

Recommended Accessories for Model: Avery Weigh-Tronix 7620 Scale

  • Brecknell 7620 Accessory
    Part #: 7200-15145 | SKU: 7097

    Ball-top shroud (9 ball)

  • Brecknell 7620 Accessory
    Part #: 7300-14808-19 | SKU: 7128

    New remote display, 7 digit, with 7 ft. cable. For use with serial numbers starting with SRN5 & SR01.

  • Brecknell 7620 Accessory
    Part #: 1148-15833 | SKU: 7132

    European power supply/AC adapter (230 VAC)

  • Brecknell 7620 Accessory
    Part #: 7300-14808-08 | SKU: 7129

    Remote display, 7 digit, with 7 ft. cable. For use with serial numbers starting with SRF6 or SRQ1.

  • Brecknell 6700 Series Accessory
    Part #: 9570-13474 | SKU: 7130

    MR4KB Scale-to-Keyboard wedge decoder (decimal pounds mode only).
