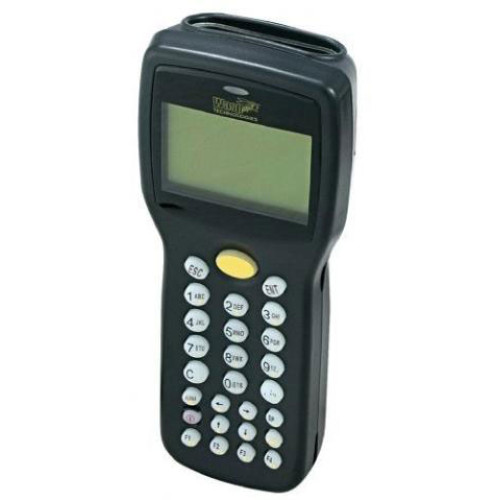

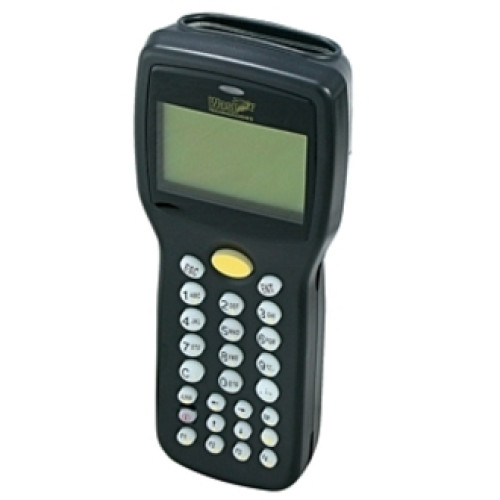

Wasp WDT2200 Mobile Computer
Part #: 633808510145 | SKU: WAS143961

The WDT2200 mobile computer features rugged construction, designed to protect your investment. The WDT2200 is built to tolerate multiple 4-foot drops to concrete, ensuring your productivity even in harsh and demanding environments. Engineered to reduce maintenance costs and eliminate downtime, the WDT2200 includes IP54 protection against damage from dust and water. The WDT2200 is ideal for tracking inventory in warehouses, light distribution centers, and retail stores. Use the WDT2200 with Wasp InventoryControl and CountIt software, or design custom programming using the included App-Gen programming tool. Flexible data entry options guarantee that you can always gather the information you need. Easily scan all common 1D barcodes with the WDT2200’s integrated laser scanner, or enter information manually using the 26-key alphanumeric keypad. The WDT2200 offers the perfect blend of performance and affordability, ideal for today’s business environment.

Wasp WDT2200 Mobile Computer

Part Details: WDT2200, Portable Data Terminal, DOS, 4.5 MB, Laser.

Need a different version of the Wasp WDT2200 Mobile Computer? View all 2 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	No
IP Rating	No
Keypad	26 Keys
Manufacturer	Wasp
Model Name	WDT2200
Operating System	No
Operating Temperature	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser

Wasp WDT2200 Specs (pdf)

Technical Information

Operating System: DOS Compatible
Processor: NEC V25
Data Collection Type: Batch
Wireless Security: Not Included
Scanner Type: Laser
Symbologies Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Codabar
- Code 39
- Code 39 Full ASCII
- Code 128
- ITF
- Interleaved 2 of 5
- EAN-128
- China Post
- China Postal Code

General Information

Manufacturer:
- Wasp
- Informatics, Inc
Product Name: WDT2200 Portable Data Terminal

Physical Characteristics

Display:
- Monochrome Backlight - 8 Lines x 16 Characters - LCD
- Monochrome Backlight - 4 Lines x 12 Characters - LCD
Display Resolution: 100 x 65
Keyboard:
- 26 Key Alphanumeric
- 1 Key Trigger
Battery Capacity: 900 mAh
Battery Type: Lithium Ion
Dimensions: 35mm (1") x 67mm (3") x 168mm (7")
Weight: 245 g - Approximately with Battery Pack

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 8kV Air Discharge
- 4kV Contact Discharge
Drop Spec: 1.5m To Concrete

Agency Approvals

Agency Approvals:
- CE
- FCC

Wireless Data Communications

Maximum RF Data Rate Supported: Not Included
Antenna Connectors: Not Included

Memory

RAM Memory: 4.5MB
Flash Memory: 256KB

Other

Additional Information: Communication: RS232 Serial Communication

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
