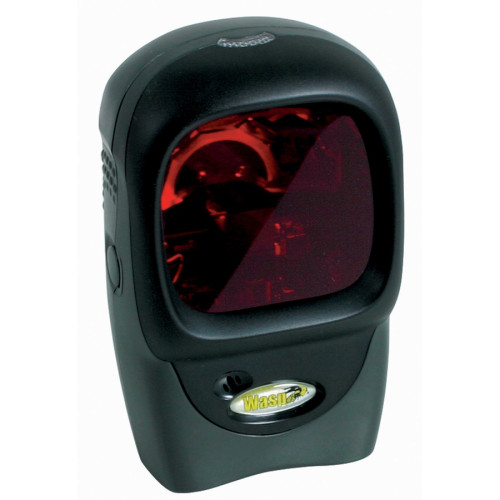

Wasp WPS150 Barcode Scanner
Part #: 633808121341 | SKU: WAS143946

The WPS150 Omni-Directional Laser POS Barcode Scanner is the ideal laser scanner for Point-of-Sale (POS) retail applications. Featuring a 20-line omni-directional laser scan pattern, this POS barcode scanner delivers exceptionally high-speed and accurate barcode reads for rapid customer POS check out. For busy retail environments, the WPS150 POS barcode scanner can be used in a hands-free mode or handheld mode. Checkout personnel simply wave the barcode label or barcode tag across the face of this POS barcode scanner. Regardless of the barcode label orientation, the WPS150 omni-directional scan engine will read the POS barcode label and assist in the rapid check out of your customers. The speed and accuracy increases customer satisfaction and frees checkout personnel to assist more customers. The WPS150 POS barcode scanner comes with all you need to start scanning barcodes right out of the box. A USB cable is included (an optional PS/2 cable can be purchased) as well as setup and operating information. If any customized configuration is required, this can be achieved easily by scanning a provided set of programming barcodes.

Wasp WPS150 Barcode Scanner

Part Details: WPS150, Omnidirectional Barcode scanner with USB Cable

Need a different version of the Wasp WPS150 Barcode Scanner? View all 1 configurations

Additional Information

Included Cables	USB
Manufacturer	Wasp
Model Name	WPS150
Product Condition	No
Specialty Encoding	None

Wasp WPS150 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Scan Rate: 1500 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- Code 128
- UCC/EAN 128
- ISBT 128
- Code 39
- Trioptic Code 39
- Interleaved 2 of 5
- Discrete 2 of 5
- Chinese 2 of 5
- Code 93
- Code 11
- Codabar
- MSI
- RSS-14
- RSS-Expanded
- RSS-Limited
- UPC-A
- UPC/EAN/JAN
- Code 128
- UCC/EAN 128
- ISBT 128
- Code 39
- Trioptic Code 39
- Interleaved 2 of 5
- Discrete 2 of 5
- Chinese 2 of 5
- Code 93
- Code 11
- Codabar
- MSI
- RSS-14
- RSS-Expanded
- RSS-Limited
- UPC-A
- UPC/EAN/JAN
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 2.50"@5 mil
- 0 mil - 6"@7.80 mil
- 0 mil - 7.50"@10.40 mil
- 0 mil - 8.50"@13 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Wasp
Manufacturer: Wasp Barcode Technologies
Product Model: WPS150
Product Name: WPS150 Barcode Reader

Physical Characteristics

Height: 5.5"
Width: 3.5"
Depth: 3"
Color: Black
Weight (Approximate): 9.90 oz

Interfaces/Ports

Host Interface: USB

Other

Package Contents:
- WPS150 Barcode Reader
- 6ft. USB Cable
- WPS150 Barcode Reader
- 6ft. USB Cable
Certifications & Standards:
- Electrical Safety:
- UL 1950
- CSA C22.2 No. 950
- Laser Safety:
- CDRH Class IIa
- IEC 60825 Class 1
- EMC:
- CISPR B
- FCC B
- EN60825
Platform Supported: PC
Additional Information: 6ft USB Cable

Power Description

Input Voltage: 5 V DC

Extended Details
