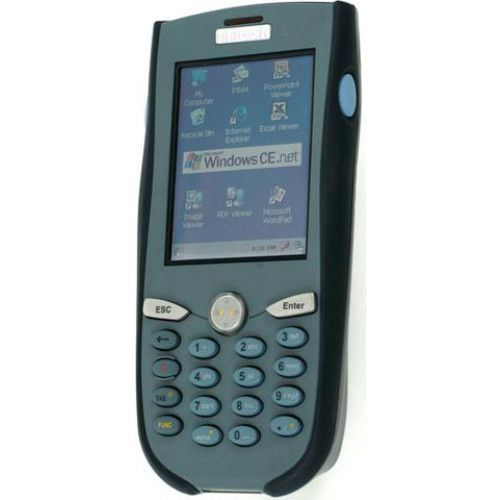

Unitech PA962 Mobile Computer
Part #: PA962-920AC | SKU: 20914

Business productivity and efficiency is the irresistible force driving Enterprise to adopt mobile tools. The Unitech PA962 was specifically designed to increase your productivity in the warehouse, on the road, or in the field - by dynamically linking data collection and host systems. wireless The PA962 incorporates a built-in scanner for industry standard bar codes, a 19 key keypad, and a touch screen. Data Collection is simple, fast and accurate. Expansion slots for WLAN or WWAN makes real world data transaction possible where you really need it - in the field. Working environments are not always perfectly lit, so the PA962 features an LCD and keypad backlight that makes anytime, anywhere operation possible. Control the keypad backlight on/off and LCD backlight contrast for power saving via a simple hot key. The rugged PA962 can withstand 1.2 meter (4 foot) bounces off a concrete floor and is sealed to IP54 standards against water and dust. The rugged housing protects the terminal against the harsh working environment often encountered by mobile users. The double-cell battery pack provides long hours of mobile operation, uncompromised productivity, and minimal down time.

Unitech PA962 Mobile Computer

Part Details: PA962 Batch Portable Terminal (WINCENET4.2, Color, Laser, 400 MHz, 64MB RAM, 64MB Flash and RS232)

Need a different version of the Unitech PA962 Mobile Computer? View all 13 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	No
Manufacturer	No
Model Name	PA962
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

PA962 Specs (pdf)

Technical Information

Operating System: Windows CE .NET 4.2
Processor: Intel XScale 400MHz
Data Collection Type: Batch
Scanner Type: Laser
Symbologies Supported:
- Codabar
- Code 11
- Code 39
- Code 39 Full ASCII
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-128
- Interleaved 2 of 5
- ISBT 128
- MSI/PLESSEY
- Standard 2 of 5
- Toshiba Code
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- UPC/EAN 2 Digit Add-on
- UPC/EAN 5 Digit Add-on

General Information

Manufacturer: Unitech
Product Line: Portable Terminals (PT)
Product Name: PA962 Portable Terminal

Physical Characteristics

Display: Color - Touch Screen TFT LCD
Display Resolution: 240 x 320
User Accessible Expansion Slot:
- PCMCIA Type II
- CF Card Type I/II
Keyboard: 19 Key Full Alphanumeric Keypad
Battery Capacity: 1800 mAh
Battery Type: Lithium Ion - Included
Dimensions: 1.70" (43mm) x 3.49" (89mm) x 7.28" (185mm)
Weight: 15.5 oz - With Battery Pack

Other

Additional Information:
- KeyBoard: 2 Side keys for scanner trigger
- RS232: Full duplex asynchronous communication
- CEterm
- MCL Client
- PowerNet TN Client
- RFGen
Package Contents:
- PA962 Portable Terminal
- 64MB RAM
- A/C Adapter
- RS232 Communication Cable
- CD-ROM with manuals
- OS: CE.NET 4.2

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -5Â°C (23Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 12kV Air Discharge
- 8kV Contact Discharge
Drop Spec: 4' To Concrete Multiple

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s)
