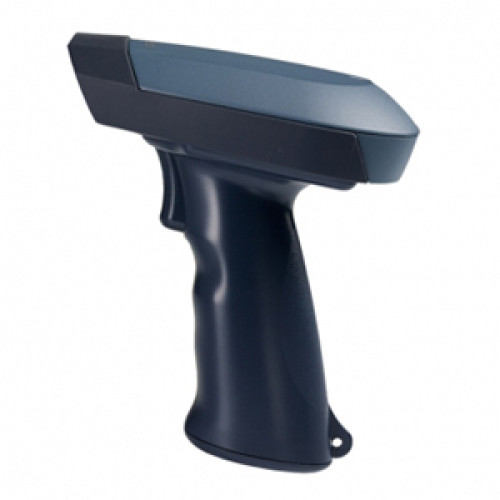

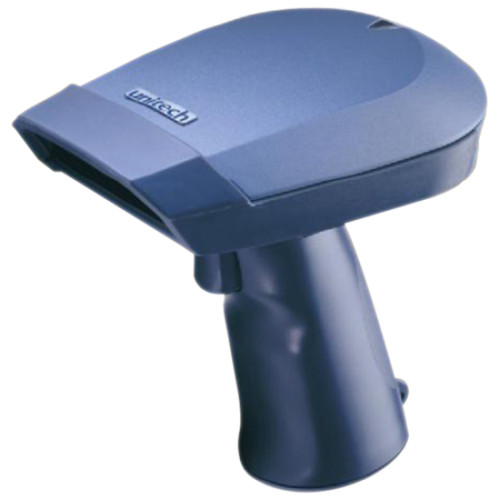

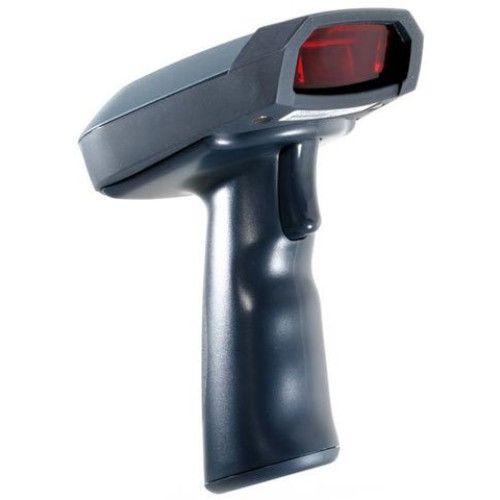

Unitech MS860 Barcode Scanner
Part #: MS860-W8AG | SKU: 164408

Sleek and lightweight, the wireless MS860 withstands multiple 5-feet drops onto concrete floor, thanks to its surrounding rubber nose and bumper. Its high speed scanning, low power consumption and effective depth of field, make the wireless MS860 suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and expense by making software changes unecessary.

Unitech MS860 Barcode Scanner

Part Details: Wireless Scanner, Docking Station, 5' Drop, Wide Angle Laser Scanner, 1 Year Warranty, Power Supply, (Bluetooth with Optional Interfaces or WiFi 802.11b with USB)

Need a different version of the Unitech MS860 Barcode Scanner? View all 7 configurations

Additional Information

Form Factor	No
Included Cables	USB
Manufacturer	No
Model Name	MS860
Product Condition	No
Specialty Encoding	None

MS860 Specs (pdf)

Technical Information

Scan Pattern: Bi-directional
Scan Rate: 104 scan/s
Connectivity Technology: Wireless
Scanning Distance: 44.49"
Light Source: Laser
Image Sensor: CCD
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- Delta Code
- EAN-8
- EAN-13
- EAN128
- Italian Pharmacy
- Label Code IV & V
- MSI / Plessy
- Interleaved 2 of 5
- Standard 2 of 5
- UPC-A
- UPC-E
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- Delta Code
- EAN-8
- EAN-13
- EAN128
- Italian Pharmacy
- Label Code IV & V
- MSI / Plessy
- Interleaved 2 of 5
- Standard 2 of 5
- UPC-A
- UPC-E
Maximum Scan Resolution: 4 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS860
Product Name: MS860 Handheld Barcode Reader

Physical Characteristics

Height: 5.7"
Width: 3.5"
Depth: 5.1"
Weight (Approximate): 10.90 oz

Other

Package Contents:
- MS860 Handheld Barcode Reader
- Power Supply
- Cables
- Cradle
- MS860 Handheld Barcode Reader
- Power Supply
- Cables
- Cradle

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Radio Frequency: Yes
