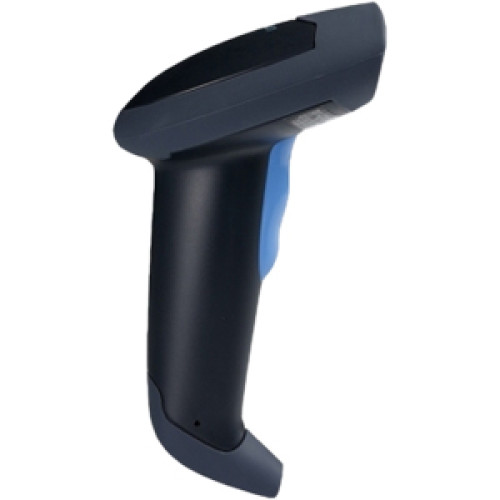

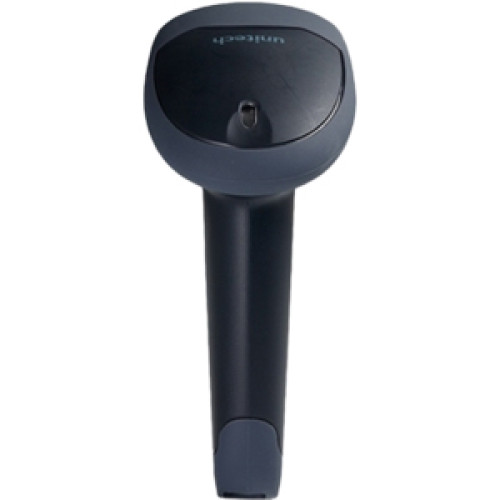

Unitech MS830 Barcode Scanner
Part #: MS830-HDKG | SKU: 253715

Sleek and lightweight, the MS830 withstands multiple 5-feet drops onto concrete floor, thanks to its surrounding rubber nose and bumper. Its high speed scanning, low power consumption and effective depth of field, make the MS830 series suitable for a wide range of applications. Furthermore, our powerful decoder allows data to be edited and formatted before it is sent to the host, which saves time and money by making software changes unecessary.

Unitech MS830 Barcode Scanner

Part Details: Ps/2 & At Interface, High Density High Visibility Laser Scanner, 5'' Drop, 3 Years Warranty, Dark Color

Need a different version of the Unitech MS830 Barcode Scanner? View all 9 configurations

Additional Information

Manufacturer	No
Model Name	MS830
Product Condition	No
Scanner Capability	1D
Scanner Type	Laser

MS830 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Bi-directional
Scan Rate: 40 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- Codabar
- Code 39 Full ASCII
- Code 93
- Code 32
- Interleaved 2 of 5
- Standard 2 of 5
- EAN-128
- Code 11
- Delta
- MSI/PLESSEY
- Code 128
- Toshiba Code
- EAN-128
- China Post
- Code 39
- Label Code IV
- Label Code V
- Italian Pharmacy
- ISBT 128
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- Codabar
- Code 39 Full ASCII
- Code 93
- Code 32
- Interleaved 2 of 5
- Standard 2 of 5
- EAN-128
- Code 11
- Delta
- MSI/PLESSEY
- Code 128
- Toshiba Code
- EAN-128
- China Post
- Code 39
- Label Code IV
- Label Code V
- Italian Pharmacy
- ISBT 128
Maximum Scan Resolution: 4 mil
Depth of Field:
- 1.57" - 5.10"@5 mil - Code 39
- 1.38" - 5.90"@6 mil - Code 39
- 1.97" - 13"@15.60 mil - JAN
- 1.18" - 29.90"@40 mil - Code 39

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS830
Product Name: MS830 Barcode Reader

Physical Characteristics

Height: 7.1"
Width: 2.8"
Depth: 3.9"
Color: Dark Gray
Weight (Approximate): 5.50 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MS830 Barcode Reader
- Keyboard Wedge Cable
- MS830 Barcode Reader
- Keyboard Wedge Cable
Certifications & Standards:
- CE
- FCC
- BSMI
- ROHS
Additional Information:
- Supported Interfaces:
- TTL (DB9 Squeeze & Release)
- Keyboard Wedge (PS/2 or AT)
- RS-232 (DB9)
- USB (Type A)

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 5 V DC

Extended Details
