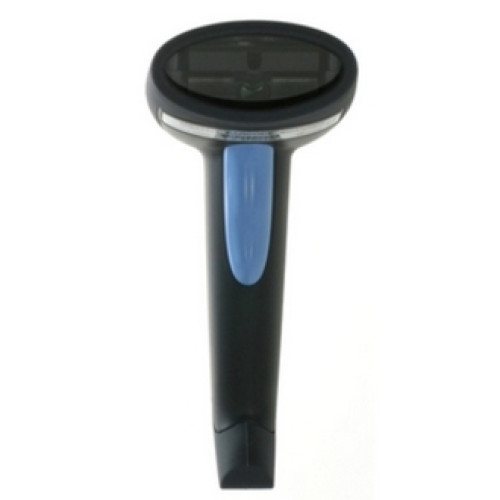

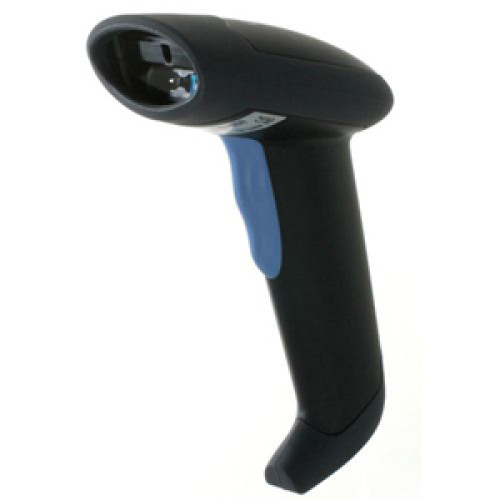

Unitech MS331 Barcode Scanner
Part #: MS331-1U1 | SKU: 17101

The Unitech MS331 is a durable, user-friendly barcode scanner. The MS331 features high performance at a cost-effective price, giving users in health care, office, light industry and other areas an excellent productivity enhancement tool. The MS331 features a long-range CCD scanner with an extended depth of field, plus a scan width of up to 18cm. The high reliability and first-pass scanning success rate of the Unitech MS331 makes data collection tasks faster and more efficient. An audio beeper and visible good-scan LED show users their scans have been read properly. The MS331 also features a variety of connection options, including USB, RS232 / serial and PS/2 keyboard wedge.

Unitech MS331 Barcode Scanner

Part Details: CCD scanner with USB interface cable and hands free stand.

Need a different version of the Unitech MS331 Barcode Scanner? View all 7 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	MS331
Product Condition	No
Specialty Encoding	None

MS331 Specs (pdf)

Technical Information

Form Factor:
- Handheld Scanner
- Hands Free Scanner
Symbologies Supported:
- China Post
- Codabar
- Code 11
- Code 32
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- EAN-128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code V
- Label Code IV
- MSI/PLESSEY
- Toshiba Code
- Standard 2 of 5
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- Code 39 Full ASCII
- China Postal Code
Scanner Type: CCD
Scan Rate: 50 scans/second
Interface Options:
- TTL (undecoded) - DB9 Squeeze & Release
- RS-232 - DB9
- Keyboard Wedge - PS/2 or AT
- USB - Type A
Interface Connectivity: Corded
Scan Pattern: Linear
Input Voltage: 5 V DC
Depth of Field: 7.08"

General Information

Manufacturer: Unitech
Product Name: MS331 Barcode Scanner

Physical Characteristics

Dimensions: 7.1" (180.34mm) x 2.75" (69.85mm) x 3.9" (99.06mm)
Weight: 5.8 oz
Color:
- Black
- Gray

Other

Package Contents:
- MS331 Barcode Scanner
- Hands Free Stand
- USB Interface Cable (1550-201423)
Cables Included: USB

Agency Approvals

Agency Approvals:
- CE
- FCC
- BSMI

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 20 to 85% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
