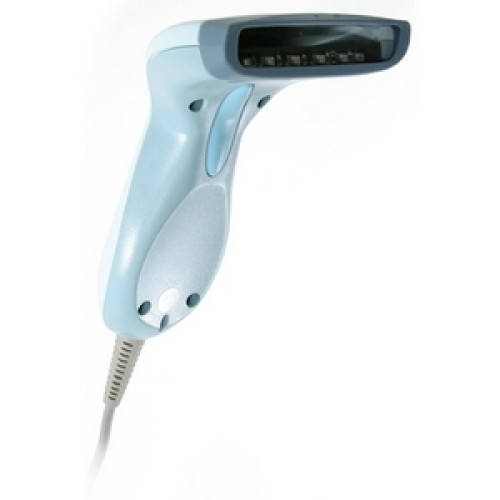

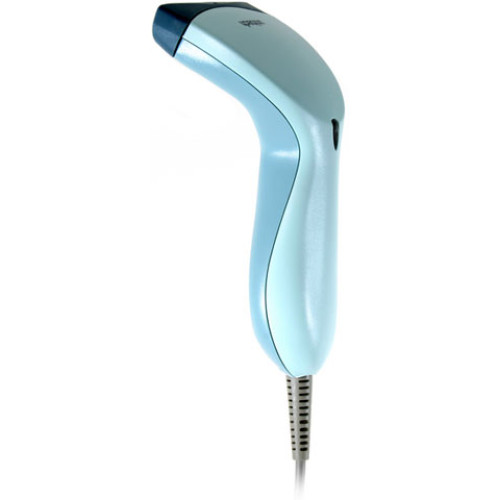

Unitech MS180 Barcode Scanner
Part #: MS180-1R | SKU: 23855

The MS180s flexible, multiple interface design supports keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets. The powerful built-in decoder reads and discriminates all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device.

Unitech MS180 Barcode Scanner

Part Details: Contact CCD Scanner, RS-232 Interface, Includes Cable, Requires Power supply

Need a different version of the Unitech MS180 Barcode Scanner? View all 12 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	MS180
Product Condition	No
Specialty Encoding	None

MS180 Specs (pdf)

Technical Information

Form Factor:
- Handheld Scanner
- Hands Free Scanner
Resolution: 4 mil(s) - minimum
Symbologies Supported:
- China Post
- Codabar
- Code 11
- Code 32
- Code 39 Full ASCII
- Code 39 (Standard)
- Code 93
- Code 128
- EAN-8 with Add-on Code
- EAN-13 with Add-on Code
- EAN-128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI/PLESSEY
- Standard 2 of 5
- Toshiba Code
- UPC-A with Add-on Code
- UPC-E with Add-on Code
- Delta Code
- China Postal Code
Scanner Type: CCD
Scan Rate: 45 scans/sec
Interface Options:
- TTL - DB9 Squeeze & Release
- Keyboard Wedge - PS/2 or AT
- RS-232 - DB9
- USB - Type A
Interface Connectivity: Corded
Input Voltage Range: 3.3 to 5 V DC
Depth of Field: 1"

General Information

Manufacturer: Unitech
Product Name: MS180 Barcode Scanner

Physical Characteristics

Dimensions: 3.15" (80.01mm) x 3.46" (87.88mm) x 7.4" (187.96mm)
Weight: 4.4 oz - without cable

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 60Â°C (140Â°F) Storage
Humidity: 20 to 95% Non-condensing

Other

Package Contents:
- MS180 Barcode Scanner
- 9-pin RS232 cable (1550-201409)
Cables Included: RS-232

Agency Approvals

Agency Approvals:
- CE
- FCC Class A

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details
