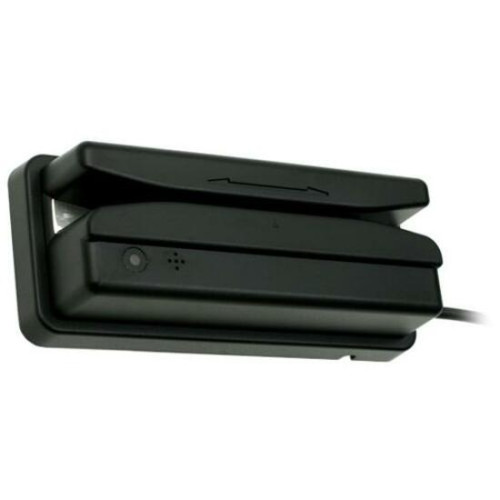

Unitech MS146 Barcode Card Reader
Part #: MS146I-2G | SKU: 26591

The MS146 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Currently, the MS146 is available in USB interface. Decoded versions are easy to use and configure. All decoded MS146s can be configured with Scanner Configuration Manager software. And configurations can be duplicated in other units by generating custom setup labels.

Unitech MS146 Barcode Card Reader

Part Details: Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode

Need a different version of the Unitech MS146 Barcode Card Reader? View all 31 configurations

Additional Information

Manufacturer	No
Model Name	MS146
Product Condition	No

MS146 Specs (pdf)

Technical Information

Connectivity Technology: Cable
Light Source: Infrared
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
- China Postal Code
- Codabar
- Code 11
- Code 32
- Code 39 (full ASCII)
- Code 39 (Standard)
- Code 93
- Code 128
- Delta Code
- EAN-8 with add-on code
- EAN-13 with add-on code
- EAN 128
- Interleaved 2 of 5
- ISBN / Bookland EAN
- ISBT 128
- Italian Pharmacy
- Label Code IV
- Label Code V
- MSI / Plessey
- Standard 2 of 5
- Toshiba Code
- UPC-A with add-on code
- UPC-E with add-on code
Maximum Scan Resolution: 6 mil

General Information

Product Type: Swipe Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS146
Product Name: MS146 Slot Barcode Reader

Physical Characteristics

Height: 3.8"
Width: 1.4"
Depth: 1.9"
Color: Black
Weight (Approximate): 6.70 oz

Interfaces/Ports

Host Interface: Serial

Other

Certifications & Standards: RoHS
Additional Information: Cable: 6.0 ft.

Warranty

Limited Warranty: 2 Year
