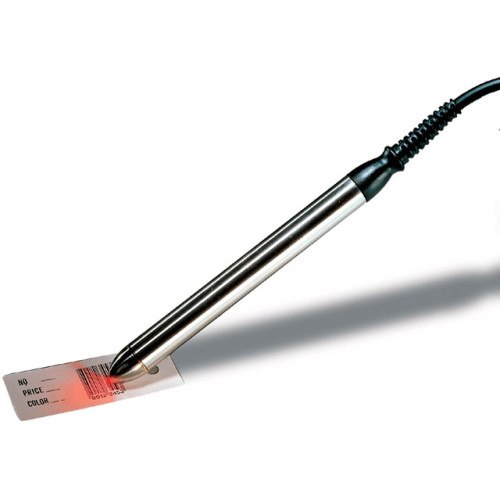

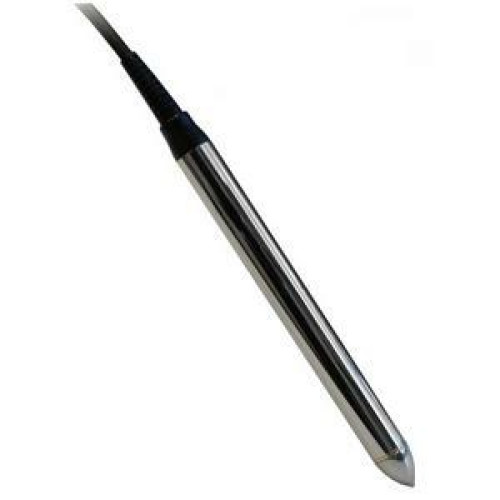

Unitech MS120 Barcode Scanner
Part #: MS120-3 | SKU: 4455

The MS120 Series Bar Code Wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color faded and low contrast barcodes quickly and accurately the MS120 is a proven solution. The polished sapphire tip reduces wear on labels and is also easily replaced if damaged. The MS120 is available with three different interfaces. The MS120A is an undecoded model which interfaces via a 9-Pin squeeze release connector. The MS120-2 has an RS232 interface with a built-in decoder. With a key-board wedge (AT or PS-2) interface the MS120-3 also has a built-in decoder. It's shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the good read beep that lets you know the data has been successfully captured. It doesn't get any easier than that.

Unitech MS120 Barcode Scanner

Part Details: MS120 Pen Scanner (Stainless Steel Wand, with Keyboard Wedge Interface and AT-XT Y Cable)

Need a different version of the Unitech MS120 Barcode Scanner? View all 13 configurations

Additional Information

Connectivity	No
Form Factor	No
Included Cables	USB
Manufacturer	No
Model Name	MS120
Product Condition	No
Ruggedness	General Purpose
Scan Pattern	No
Scanner Type	No
Specialty Encoding	None

MS120 Specs (pdf)

Technical Information

Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- China Postal Code
- Codabar
- Code 11
- Code 128
- Code 39 Full ASCII
- Code 93
- EAN-13
- Interleaved 2 of 5
- Italian Pharmacy
- MSI/PLESSEY
- Standard 2 of 5
- UPC-A
- UPC-E
- China Postal Code
- Codabar
- Code 11
- Code 128
- Code 39 Full ASCII
- Code 93
- EAN-13
- Interleaved 2 of 5
- Italian Pharmacy
- MSI/PLESSEY
- Standard 2 of 5
- UPC-A
- UPC-E
Maximum Scan Resolution: 5 mil
Depth of Field: 40 mil@

General Information

Product Type: Wand Barcode Scanner
Brand Name: Unitech
Manufacturer: Unitech Electronics Co., Ltd
Product Model: MS120-3
Product Name: MS120-3 Barcode Wand Reader

Physical Characteristics

Depth: 5.9"
Weight (Approximate): 2.12 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Package Contents:
- MS120-3 Barcode Reader
- Keyboard wedge Cable (AT DIN-5 Connector)
- MS120-3 Barcode Reader
- Keyboard wedge Cable (AT DIN-5 Connector)
Platform Supported: PC
Additional Information:
- Cable: Coiled Cable
- Case material: Stainless steel
- Reading angle: 0 to 45 Degree
- Depth of field: 0.04"
- Rugged, lightweight design
- Easy to use and configure
- Low power consumption
- Durable, replaceable sapphire tip

Warranty

Limited Warranty: 1 Year

Power Description

Input Voltage: 5 V DC

Extended Details
