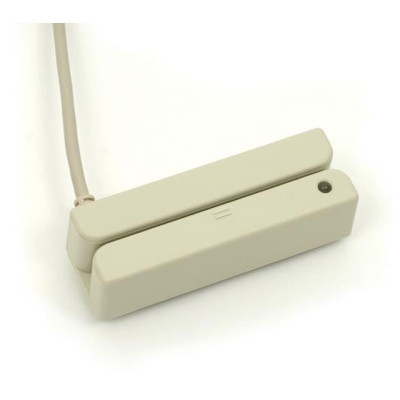

Unitech MS240 Credit Card Reader
Unitech Barcode Scanner, Keyboard & More

Unitech MS240 Credit Card Reader

Unitech MS240 Credit Card Reader

Unitech's MS240 reader provides a simple, reliable, and versatile magnetic stripe reading solution for all your MSR needs. The MS240 is the perfect MSR tool for applications such as point of sale, access control, and self-service applications. Known for their reliability, they are easy to install and use. The MS240 is available in dual and triple track configurations for reading ISO cards and driver's licenses. Readers can be affixed to most computer keyboards or to any flat surface, and connected to any PC or Mac via Keyboard wedge or USB interface.
Discontinued - Need Assistance
See all options
  • 1 year warranty
  • 1,000,000 minimum passes magnetic head
  • Advanced data editing capabilities
  • Bi-directional card swiping
  • Compact space-saving design
  • Compatible with all popular computers
  • Easily desktop or wall mounted
  • ISO 7811, AAMVA and CA DMV formats
  • Output configurable via Windows software
  • PS/2 wedge or USB keyboard interfaces

Mechanical

Magnetic Stripe Formats ISO 7811, AAMVA, & CA DMV
Swipe Speed 3 to 55 inches per second, bi-directional
Card Width 0.010 to 0.050 inches
Slot Width 0.055 inches (1.37mm)
Interface Unitech standard decoding with advanced output data editing
Dimensions Length: 3.94 inches (100mm)
Width: 1.38 inches (35mm)
Height: 1.18 inches (30mm)
Weight Approximately 9 oz. (255 grams) with cable
Color Beige
Cable Length 6 feet (1.83 meters)
Connectors PS/2 keyboard wedge & USB
Mounting 2 mounting holes with brass threaded inserts Velcro strips

Reliability

Electronics MTBF 125,000 POH
Magnetic Head Life 1,000,000 passes minimum
Rail and Cover Life 1,000,000 passes minimum
Read Rate Less than one error in 100,000 bits on cards conforming to ISO 7811 1-5 (not caused by operator error)

Environmental

Operating temperature 32°F to 131°F (0°C to 55°C)
Storage temperature -22°F to 158°F (-30°C to 70°C)
Humidity Maximum - 95% non-condensing
Warranty 1 year
Extended Details
Refine Your Options
  1. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-2K | SKU: 15384

    MS240 Reader (Tracks 1 and 2, PS/2 Keyboard Wedge) - Color: Beige
  2. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-3K | SKU: 15385

    MS240 Reader (Tracks 1, 2 and 3, Keyboard Wedge Interface) - Color: Beige
  3. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-2U | SKU: 15386

    MS240 Reader (Tracks 1 and 2, USB Keyboard Interface) - Color: Beige
  4. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-3U | SKU: 15387

    MS240 Reader (Tracks 1, 2 and 3, USB Keyboard Wedge) - Color: Beige
  5. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-3UR | SKU: 15388

    MS240 Reader (Tracks 1, 2 and 3, USB Serial) - Color: Beige
  6. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240 | SKU: 15389

    Reader (Dual Track Mag-Stripe, AT/XT with Built-In Decoder)
  7. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-2R | SKU: 15390

    MS240 Reader (Tracks 1 and 2, RS232 Serial Interface 9-Pin) - Color: Beige
  8. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-3R | SKU: 15391

    MS240 Reader (Tracks 1, 2 and 3, RS232 Serial Interface 9-Pin) - Color: Beige
  9. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS241-3UG | SKU: 26595

    Unitech MS241 Magnetic Stripe Reader - Triple Track - 55 in/s
  10. Unitech MS240 Credit Card Reader

    Unitech MS240 Credit Card Reader
    Part #: MS240-2KG | SKU: 29629

    Unitech MS240 Magnetic Stripe Reader - Dual Track - 55in/s - Keyboard Wedge - Beige

Items 1 to 10 of 15 total

Page:
  1. 1
  2. 2

Recommended Accessories for Model: Unitech MS240 Credit Card Reader

  • Unitech MS100 Power Device
    Part #: 101000-0150 | SKU: 4520

    AC Adapter (110VAC to 5VDC) for the RS232 CCD Scanner
    Price: $26.84

  • Unitech MSR206 Accessory
    Part #: 5610679000 | SKU: 186480

    MSR206 RS-232 CABLE
    Price: $29.12

  • Unitech MSR206 Accessory
    Part #: 5611481000-R | SKU: 230868

    Unitech USB Data Transfer Cable - USB Data Transfer Cable for Card Reader - USB
    Price: $29.12

  • Unitech MS335 Power Device
    Part #: 1010-601873G | SKU: 253639

    Unitech Universal AC Adapter for Scanners
    Price: $24.80

  • Unitech MSR Accessory
    Part #: 5200-381680G | SKU: 336104

    MOUNTING KIT FOR MS146
