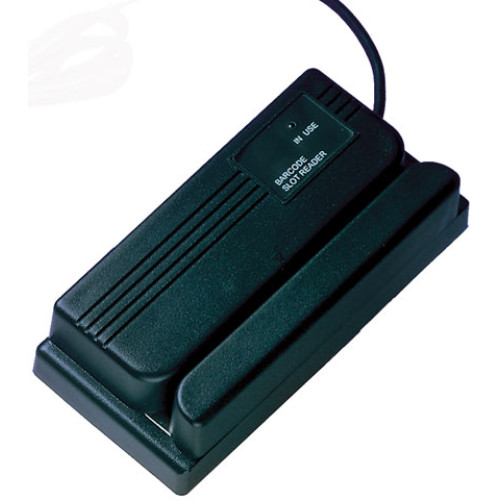

Unitech MS140 Barcode Card Reader

The MS140 family of barcode slot readers is a flexible cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm) the MS140 is capable of reading any barcoded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

MS140 Specs (pdf)

Features:

Available with TTL, keyboard wedge and RS232 interfaces
Reads most popular bar code symbologies
Easy to use and configure
50 mm to 750 mm/sec Scan Rate
6 mil minimum resolution
Reads visible and laminated bar code labels
Advanced Data Editing
Rugged, lightweight housing
Wide slot allows thicker badges
1 year warranty

The MS140 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Like most of our products, the MS140 is available with a variety of interfaces, including undecoded (TTL), keyboard wedge (XT/AT, PS/2 and Macintosh), and RS232. All Unitech undecoded products have pen output and can be connected to any of the our wedge line or to any external device that accepts pen input. Decoded versions are easy to use and configure. Both the keyboard wedge and RS232 can be configured on-screen by selecting the desired options from a menu. And the configuration can be reproduced in other units by generating custom setup labels.

Extended Details

Refine Your Options

Unitech MS140 Barcode Card Reader
Part #: MS140A | SKU: 4525

MS140 Bar Code Slot Reader (Visible Light Beam, Undecoded, DB9 Squeeze and Release Connector)
Unitech MS140 Barcode Card Reader
Part #: MS140-2 | SKU: 4526

MS140 Bar Code Slot Reader (with RS232 Interface, DB9 Connector, Visible Light Beam and Cable)
Unitech MS140 Barcode Card Reader
Part #: MS140I-2 | SKU: 4527

MS140 Bar Code Slot Reader (Infrared with RS232 Interface and DB9 Connector)
Unitech MS140 Barcode Card Reader
Part #: MS140I-3 | SKU: 4528

MS140 Bar Code Slot Reader (Infrared with Keyboard Wedge Interface and DIN Connector)
Unitech MS140 Barcode Card Reader
Part #: MS140-3 | SKU: 4529

MS140 Bar Code Slot Reader (Visible Light Beam with Keyboard Interface and DIN Connector)
Unitech MS140 Barcode Card Reader
Part #: MS140I-3PS/2 | SKU: 4530

Keyboard Wedge, Infrared Light, PS/2 Connector, Decoded, Cable included
Unitech MS140 Barcode Card Reader
Part #: MS140-3PS/2 | SKU: 4531

MS140 Bar Code Slot Reader (Visible Light Beam with Keyboard Wedge Interface and PS-2 MiniDIN Connector)
