Unitech Barcode Scanner, Keyboard & More

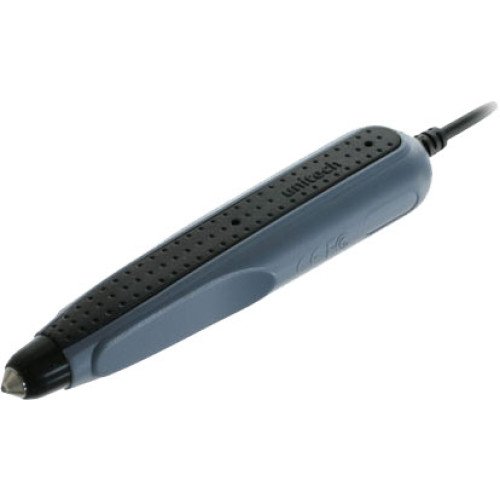

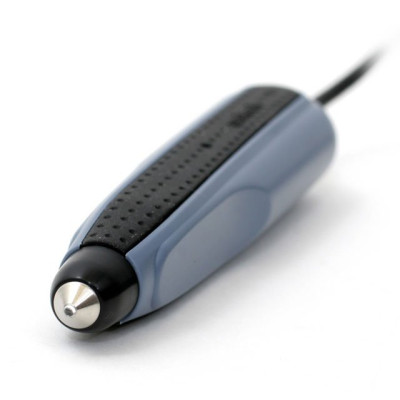

Unitech MS100 Barcode Scanner

The MS100U barcode wand is targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert barcode labels into a high quality digital signal. Able to read color, faded and low contrast barcodes quickly and accurately, the MS100U is a proven solution.

Call For Price

See all options

Specs & Info
All Options

Easy to use and configure
High scan speed
Low power consumption
Rugged, lightweight design
USB interface
Wide read angle
1 year warranty

MS100 Specs (pdf)

Optical & Performance

Light Source	650 ~ 660nm Red LED
Receiving Device	Photo Sensor
Depth of field	0.04"
Resolution	5 mils
Print Contrast	0.6 minimum
Scan Rate	4 - 24 inches/sec
Reading Angle	45 to 90 degree
Ambient Light	5000 Lux/Max

Symbologies

Types

Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar

Communication

Interface

USB, Keyboard wedge, RS232, TTL (undecoded)

Enclosure

Dimension	Length 5.5 Inches Diameter 1.2 x .9 Inches
Weight	2.7 ounces
Cable length	71 Inches
Case Material	ABS plastic

Power Source

Supply Voltage	5V DC 10%
Surge Power	< 800mA
Working Current	60mA 10mA

Environmental

Operating Temperature	32F to 122F
Storage Temperature	-4F to 140F
Humidity	20% to 85% RH non-condensing
Drop test	5-foot drop threshold

Warranty

Main Unit	2 years
Cables, Adapters	90 days

Extended Details

Refine Your Options

Shop By

Scanner Capability

1D (5)

Ruggedness

General Purpose (6)

Scanner Type

Laser (3)

Included Features

Scanner Only (3)

Included Cables

Unitech MS100 Barcode Scanner
Part #: MS100-NUCB00-SG | SKU: 282722

Corded Barcode Scanner - Unitech MS100 - 1D LED Beam Laser - General Purpose - USB - Wand - Tethered - Gray

MSRP: $150.00 Price: $121.80
Unitech MS100 Barcode Scanner
Part #: MS100-NRCB00-SG | SKU: UNI282129

Corded Barcode Scanner - Unitech MS100 - 1D LED Beam Laser - General Purpose - RS-232 Serial - Wand - Tethered - Light Gray

MSRP: $146.00 Price: $118.55
Unitech MS100 Barcode Scanner
Part #: MS100-NUCB00-JG | SKU: 410853

Corded Barcode Scanner - Unitech MS100 - 1D LED Beam Laser - General Purpose - USB - Wand - Tethered - Light Gray

MSRP: $146.00 Price: $118.55
Unitech MS100 Barcode Scanner
Part #: MS100-4JG | SKU: 153405

MS100, USB Interface, ABS plastic wand, Coiled 6 ft. Cable, 2 Year Warranty.
Unitech MS100 Barcode Scanner
Part #: MS100-NTCB00-SG | SKU: 286465

Unitech MS100 Handheld Pen / Wand Scanner (1D) - Cable Connectivity - 1D - LED
Unitech MS100 Barcode Scanner
Part #: MS100-NKCB00-SG | SKU: 282128

Unitech MS100 Handheld Pen / Wand Scanner (1D) - Cable Connectivity - 1D - LED
Unitech MS100 Barcode Scanner
Part #: MS100-3 | SKU: 27511

MS100U Bar Code Wand (Wand Scanner with Keyboard Wedge Interface, AT 5DIN with 6 Foot Cable)
Unitech MS100 Barcode Scanner
Part #: MS100A | SKU: 27609

MS100U Bar Code Wand (Wand Reader, Undecoded Wand Emulation, 9-Pin Squeeze and 6 Foot Cable) - Color: Blue/Gray
Unitech MS100 Barcode Scanner
Part #: MS100-3PS/2 | SKU: 26587

MS100U Bar Code Wand (Wand Scanner with PS2 DIN6 Interface, 6 Foot Cable)
Unitech MS100 Barcode Scanner
Part #: MS100-3PS2G | SKU: 253702

Unitech MS100 Bar Code Wand Reader - Wired - Photo Diode

Recommended Accessories for Model: Unitech MS100 Barcode Scanner

Unitech MS100 Power Device
Part #: 101000-0150 | SKU: 4520

AC Adapter (110VAC to 5VDC) for the RS232 CCD Scanner

Price: $26.84
Unitech MS100 Accessory
Part #: 400120-Z010 | SKU: 26569

Unitech Scanner Stand

Price: $24.70
Unitech MS335 Power Device
Part #: 1010-601873G | SKU: 253639

Unitech Universal AC Adapter for Scanners

Price: $24.80
