TSC TDP-247 Barcode Label Printer TSC TDP-247 Barcode Label Printer TSC TDP-247 Barcode Label Printer TSC TDP-247 Barcode Label Printer
TSC Printers

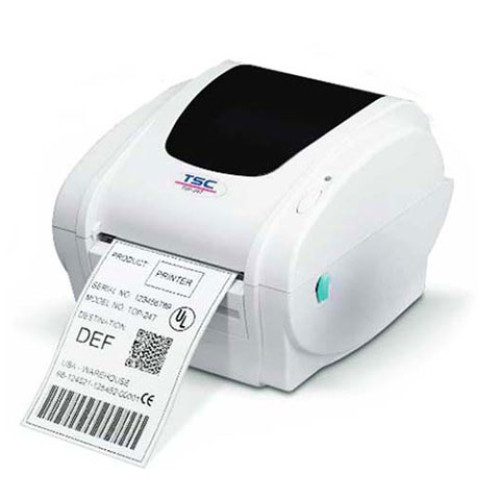

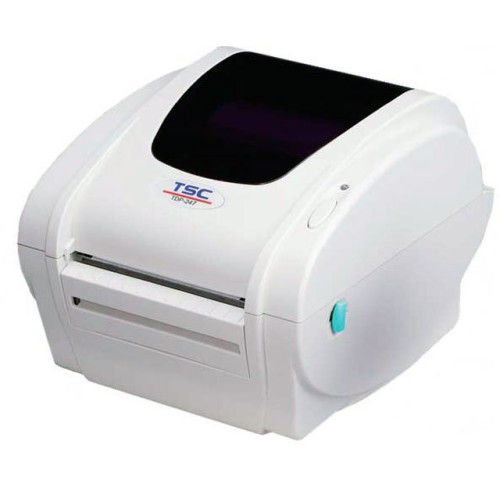

TSC TDP-247 Barcode Label Printer
Part #: 99-126A010-41LF | SKU: TSC143826

The new TDP-247 direct thermal label printers offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family. The TDP-247 is ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 inches per second. The TDP-247 can come standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations. Because of their compact design, the TDP-247 printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

TSC TDP-247 Barcode Label Printer

Part Details: TDP-247 Desktop Direct thermal Printer - 203 dpi - Interface Options -USB - Serial - Ethernet -Parallel - Maximum Print width 4.25
Need a different version of the TSC TDP-247 Barcode Label Printer? View all 14 configurations

Additional Information

Filter No
Interface Options Ethernet, Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 4.4
Max Roll Outer Diameter 5
Maximum Print Width 4.25
Model Name TDP-247
Print Method No
Print Resolution No
Print Speed 7
Printer Mobility No
Printer Type Desktop
Product Condition No
TSC TDP-247 Specs TSC TDP-247 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • EAN With 2 or 5 Digit Extension
    • UPC 2 and 5 Digit Addendums
    • MSI
    • Plessey
    • POSTNET
    • RSS-14
    • GS1 DataBar
    • Code 11
    • China Post
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code
    • RSS Stacked

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TDP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TDP-247
  • Product Name: TDP-247 Label Printer

Physical Characteristics

  • Height: 6.5"
  • Width: 7.9"
  • Depth: 9.5"
  • Form Factor: Desktop
  • Color: White

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TDP-247 Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • TDP-247 Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
  • Media Thickness: 190 mil
  • Media Sensor:
    • Cover Open Sensor
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.40"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
